AutoAutoMemoryToolsAdvisor¶

A Spring AI ChatClient advisor that gives any agent automatic long-term memory by wiring AutoMemoryTools and its companion system prompt into the request pipeline as a single, self-contained unit.

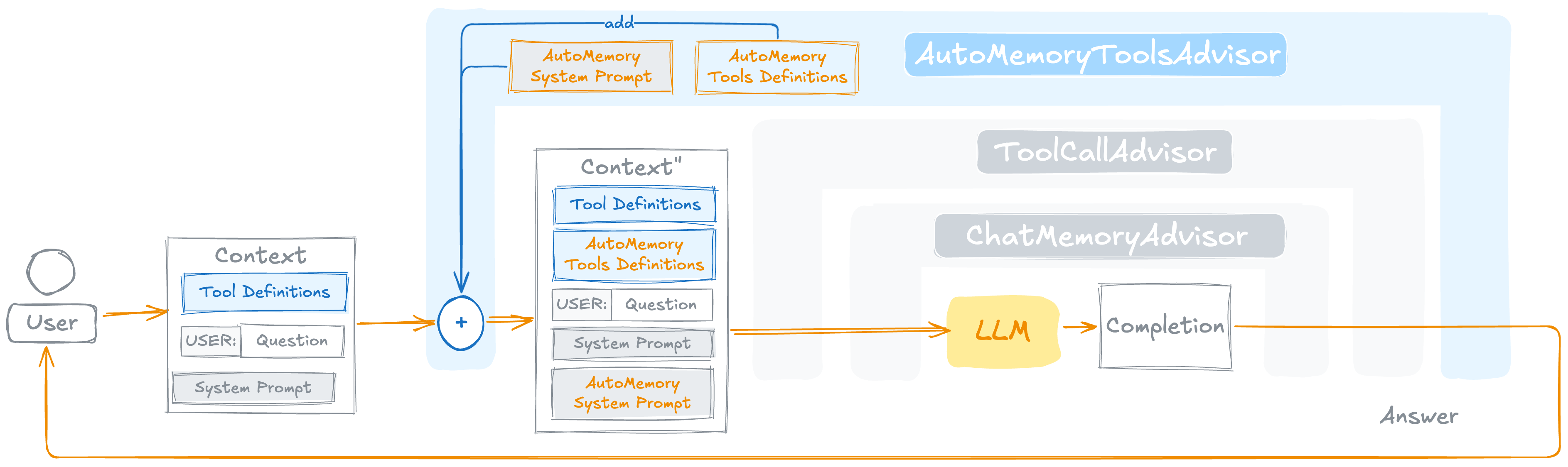

AutoAutoMemoryToolsAdvisor

What it does¶

On every before() call the advisor:

Augments the system message — appends AUTO_MEMORY_TOOLS_SYSTEM_PROMPT.md (with the configured memories root path rendered in) to whatever system message is already present.
Injects the six AutoMemoryTools — registers MemoryView, MemoryCreate, MemoryStrReplace, MemoryInsert, MemoryDelete, and MemoryRename into the prompt's ToolCallingChatOptions. Existing callbacks with the same name are never duplicated.
Optionally appends a consolidation reminder — if the configurable memoryConsolidationTrigger predicate returns true, a <system-reminder> block is appended to the system message instructing the model to summarise and remove redundant memories.

If the prompt carries no ToolCallingChatOptions the request is returned unchanged — both the tool injection and the system prompt augmentation are skipped.

after() is a passthrough. Memory persistence is driven entirely by the model via tool calls during the conversation; no post-processing is needed.

Long-term memory vs. session memory¶

AutoAutoMemoryToolsAdvisor is a long-term memory mechanism. It is designed to complement, not replace, Spring AI's built-in short-term conversation memory (e.g. MessageChatMemoryAdvisor + MessageWindowChatMemory). The two layers serve fundamentally different purposes and should normally be used together:

	Session memory (`MessageChatMemoryAdvisor`)	Long-term memory (`AutoAutoMemoryToolsAdvisor`)
Scope	Current conversation only	Persists across conversations
Storage	In-process (`ChatMemory`)	Files on disk via `AutoMemoryTools`
Content	Full message exchange — every turn	Curated facts worth keeping forever
Managed by	Spring AI automatically	The model itself via tool calls
Expires	When the process stops (or window fills)	Never — until the model deletes a file

A typical agent setup combines both:

ChatClient chatClient = ChatClient.builder(chatModel)
    .defaultAdvisors(
        // Long-term memory — facts that survive across sessions
        AutoAutoMemoryToolsAdvisor.builder()
            .memoriesRootDirectory("/home/user/.agent/memories")
            .build(),

        // Short-term memory — full conversation history for this session
        MessageChatMemoryAdvisor.builder(
            MessageWindowChatMemory.builder().maxMessages(100).build())
            .build(),

        // Tool calling
        ToolCallAdvisor.builder().build())
    .build();

In this setup the model has the best of both worlds: the full context of the current conversation via the session window, and persistent knowledge about the user and project that it accumulated over previous sessions via the memory files.

Rule of thumb: - Ephemeral details — what was said in this session, in-progress task state — belong in session memory. - Durable facts worth having next week — user preferences, project decisions, behavioural feedback — belong in long-term memory.

Quick Start¶

AutoAutoMemoryToolsAdvisor memoryAdvisor = AutoAutoMemoryToolsAdvisor.builder()
    .memoriesRootDirectory("/home/user/.agent/memories")
    .build();

ChatClient chatClient = ChatClient.builder(chatModel)
    .defaultAdvisors(memoryAdvisor)
    .build();

That's all. On the first turn the model reads MEMORY.md via MemoryView, loads relevant memory files, and writes new memories at the end of the session — all without any extra wiring.

Builder Configuration¶

AutoAutoMemoryToolsAdvisor advisor = AutoAutoMemoryToolsAdvisor.builder()
    .memoriesRootDirectory("/path/to/memories")          // required
    .order(BaseAdvisor.HIGHEST_PRECEDENCE + 200)         // optional
    .memorySystemPrompt(customPromptResource)            // optional
    .memoryConsolidationTrigger((req, instant) -> false) // optional
    .build();

Builder method	Type	Default	Description
`memoriesRootDirectory(String)`	`String`	— (required)	Root directory for all memory files. Created automatically if absent.
`order(int)`	`int`	`HIGHEST_PRECEDENCE + 200`	Advisor order. Runs before the default `ToolCallingAdvisor` at `+300`.
`memorySystemPrompt(Resource)`	`Resource`	`classpath:/prompt/AUTO_MEMORY_TOOLS_SYSTEM_PROMPT.md`	Prompt template to inject. Must contain the `{MEMORIES_ROOT_DIERCTORY}` placeholder.
`memoryConsolidationTrigger(BiPredicate<ChatClientRequest, Instant>)`	`BiPredicate`	`(req, t) -> false`	Evaluated on each request. When `true`, a consolidation reminder is appended to the system message.

Validation¶

memoriesRootDirectory must be a non-empty string — build() throws IllegalArgumentException if blank.
memorySystemPrompt must not be null — the builder method throws immediately if null is passed.
memoryConsolidationTrigger must not be null — the builder method throws immediately if null is passed.

Memory Consolidation Trigger¶

Over time the memory store can accumulate redundant or outdated entries. The memoryConsolidationTrigger lets you inject a reminder at a chosen frequency to prompt the model to clean up:

// Trigger consolidation roughly every 20 requests (stateless approximation)
AutoAutoMemoryToolsAdvisor advisor = AutoAutoMemoryToolsAdvisor.builder()
    .memoriesRootDirectory("/path/to/memories")
    .memoryConsolidationTrigger((req, instant) ->
        Math.random() < 0.05)   // ~5 % of requests
    .build();

When the predicate returns true, the following block is appended to the system message:

<system-reminder>Consolidate the long-term memory by summarizing and removing redundant information.</system-reminder>

The predicate receives:

Parameter	Type	Description
`request`	`ChatClientRequest`	The full in-flight request — inspect messages, context, or metadata to decide.
`instant`	`Instant`	Wall-clock time of the current call — useful for time-based intervals.

Common trigger strategies:

// Time-based: every 24 hours
Instant[] lastConsolidation = { Instant.now() };
.memoryConsolidationTrigger((req, now) -> {
    if (Duration.between(lastConsolidation[0], now).toHours() >= 24) {
        lastConsolidation[0] = now;
        return true;
    }
    return false;
})

// Turn-count-based: every N calls
AtomicInteger counter = new AtomicInteger();
.memoryConsolidationTrigger((req, now) ->
    counter.incrementAndGet() % 50 == 0)

Advisor Ordering¶

The default order BaseAdvisor.HIGHEST_PRECEDENCE + 200 places this advisor before the ToolCallingAdvisor (which sits at +300). This ordering ensures memory tools are registered in the options before the tool-calling advisor processes them.

If you use other advisors that also modify tool options (e.g. additional ToolCallingAdvisor instances), verify that their relative order does not prevent the memory tools from reaching the model.

Relation to AutoMemoryTools¶

AutoMemoryToolsAdvisor is a thin orchestration layer. The six memory operations, sandboxing logic, and file conventions all live in AutoMemoryTools. The advisor adds:

Automatic system prompt injection (no need to configure the prompt separately on the ChatClient)
Automatic tool registration (no need to call .defaultTools(memoryTools))
Duplicate-filtering guard so memory tools are never registered twice
The optional consolidation trigger

Manual setup vs. advisor¶

If you need full control over when and how the system prompt and tools are applied, you can wire AutoMemoryTools directly without the advisor:

// Manual setup
AutoMemoryTools memoryTools = AutoMemoryTools.builder()
    .memoriesDir("/path/to/memories")
    .build();

String memoryPrompt = new PromptTemplate(memorySystemPromptResource)
    .render(Map.of("MEMORIES_ROOT_DIERCTORY", memoriesDir));

ChatClient chatClient = ChatClient.builder(chatModel)
    .defaultSystem(baseSystemPrompt + "\n\n" + memoryPrompt)
    .defaultTools(memoryTools)
    .defaultAdvisors(ToolCallAdvisor.builder().build())
    .build();

// Advisor setup — equivalent, less boilerplate
ChatClient chatClient = ChatClient.builder(chatModel)
    .defaultAdvisors(
        AutoAutoMemoryToolsAdvisor.builder()
            .memoriesRootDirectory("/path/to/memories")
            .build(),
        ToolCallAdvisor.builder().build())
    .build();

System Prompt¶

The default companion prompt (AUTO_MEMORY_TOOLS_SYSTEM_PROMPT.md) is bundled in the jar at classpath:/prompt/AUTO_MEMORY_TOOLS_SYSTEM_PROMPT.md. It instructs the model to:

Read MEMORY.md at the start of sessions where prior context may be relevant
Use the two-step save workflow (MemoryCreate → MemoryInsert into MEMORY.md)
Apply the four memory types (user, feedback, project, reference)
Verify recalled memories before acting on them
Avoid saving ephemeral state, code patterns, git history, or fix recipes

The template contains one placeholder: {MEMORIES_ROOT_DIERCTORY} (note the spelling), which is filled with the configured memoriesRootDirectory at build() time.

To use a custom prompt, provide any Resource that contains the same placeholder:

@Value("classpath:/my-custom-memory-prompt.md")
Resource customPrompt;

AutoAutoMemoryToolsAdvisor.builder()
    .memoriesRootDirectory("/path/to/memories")
    .memorySystemPrompt(customPrompt)
    .build();

Demo Application¶

See memory-tools-advisor-demo for a complete runnable example showing AutoAutoMemoryToolsAdvisor combined with ToolCallAdvisor, MessageChatMemoryAdvisor, and a custom logging advisor.
