ChatClient Integration¶

SessionMemoryAdvisor is the primary integration point between Spring AI Session and a ChatClient. It wires session management into the ChatClient pipeline transparently — no manual history loading or appending required in application code.

What the advisor does¶

On every request the advisor:

Resolves the session ID from SESSION_ID_CONTEXT_KEY, which must be present on every request, creating the session if it does not exist and checking ownership if it does (see Passing a session ID per request).
Loads the session's history with the configured eventFilter (default EventFilter.all()), merged with any per-request EVENT_FILTER_CONTEXT_KEY filter, and prepends it to the prompt. EventFilter.active() is always merged in on top, so archived (compacted-out) events never reach the prompt. Of any stored system messages (an opt-in), only the latest one is kept; under a lastN or page window it is looked up separately, so a window never drops the system prompt. A lastN window is extended by the repository to the start of the turn it lands in, and any tool call or tool result left without its counterpart is dropped from the prompt with a warning (see Tool-call integrity).
Moves all SystemMessages to the front, in their relative order, and sends a text that exactly matches an earlier one only once. Texts are never merged or rewritten, so the prompt stays stable for prompt caching. See System Messages.
Appends the prompt's last user message to the session, if the configured MessageFilter accepts it. Inside a tool-calling loop this is the trailing tool-response message instead (Prompt.getLastUserOrToolResponseMessage()); it is stored exactly when the tool call it answers was stored, whatever the filter says.
After the model responds, appends the assistant message(s) through the configured MessageFilter (default: MessageFilter.skipEmptyMessages()). By default, empty assistant messages (blank text, no tool calls, and no media) are skipped — some models (e.g. Bedrock Converse) emit an empty end_turn frame after tool use that would otherwise be replayed and rejected on the next request.
If a trigger fires, runs compaction synchronously before returning, once the turn is complete: a reply that still requests tool calls means the turn is in progress, so inside a tool-calling loop compaction waits for the final reply. The full turn is already written at that point, so there is no race between compaction and message appending.

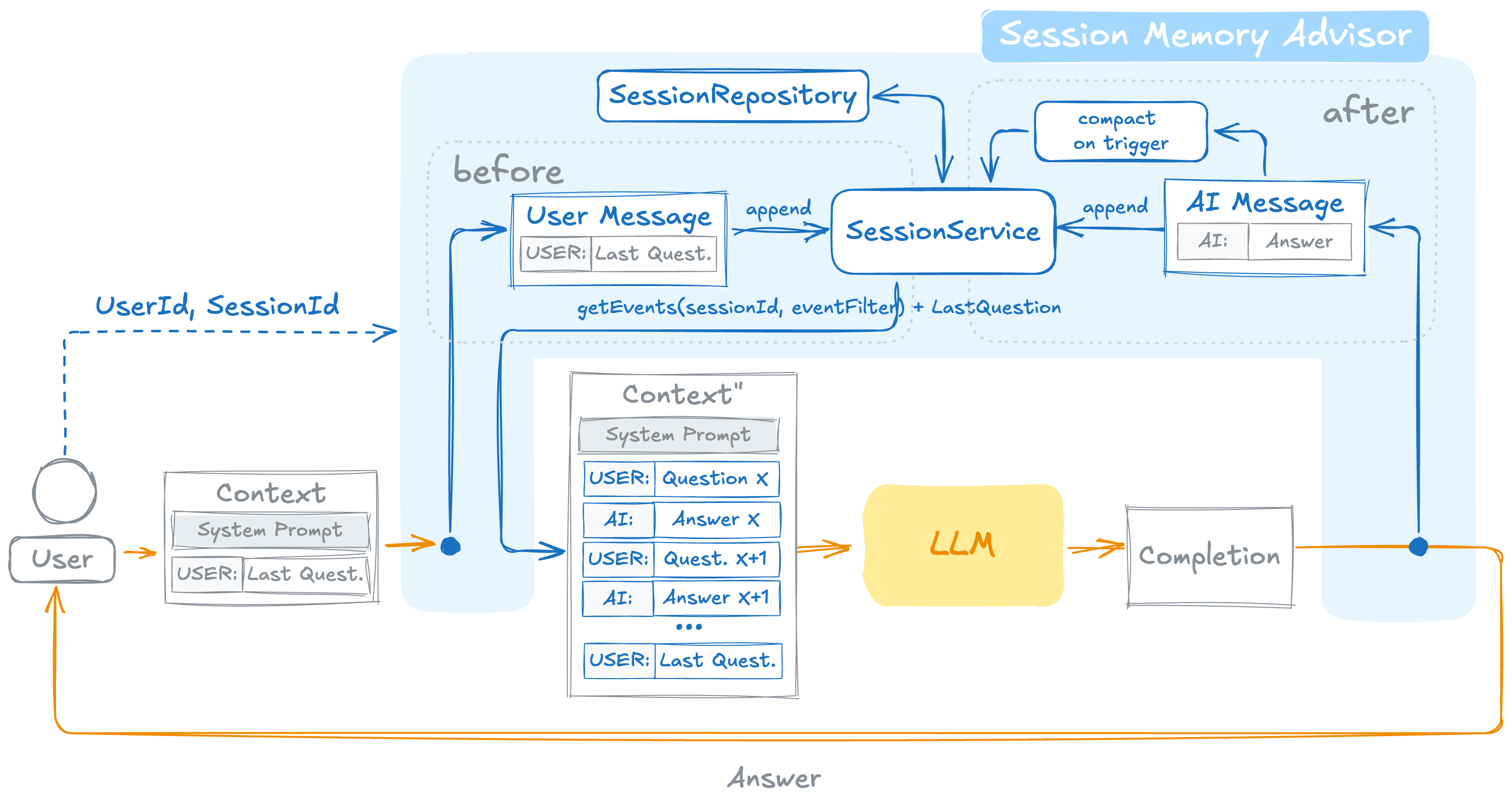

The diagram below shows the round-trip: the before phase loads history and builds the expanded prompt, the after phase appends the assistant message and compacts on trigger.

Spring AI Session — SessionMemoryAdvisor flow

Setup¶

SessionMemoryAdvisor advisor = SessionMemoryAdvisor.builder(sessionService)
    .defaultUserId("alice")
    // Compact when 20 turns accumulate, using LLM summarization to retain context
    .compactionTrigger(new TurnCountTrigger(20))
    .compactionStrategy(
        RecursiveSummarizationCompactionStrategy.builder(chatClient)
            .maxEventsToKeep(10)
            .build()
    )
    .build();

ChatClient client = ChatClient.builder(chatModel)
    .defaultAdvisors(advisor)
    .build();

Session ID is required on every request

SESSION_ID_CONTEXT_KEY must be set in the advisor context on every call. Omitting it throws IllegalStateException. This is intentional — a shared fallback session ID would silently merge history across different users.

Trigger and strategy must be set together

Setting only one of compactionTrigger or compactionStrategy makes build() throw IllegalArgumentException. Set both or neither.

Default advisor order — nested inside the tool-calling loop

The default order is Ordered.HIGHEST_PRECEDENCE + 1000, a lower precedence than ToolCallingAdvisor's HIGHEST_PRECEDENCE + 300. The tool-calling advisor therefore wraps SessionMemoryAdvisor, whose before()/after() run once per round of the tool-call loop.

This is deliberate and safe. From round 2 on, before() finds its loaded history already present as a contiguous run in the prompt and doesn't prepend it again. Messages are compared by content (type, text, tool calls and tool responses), not equals, so the check also works when the repository doesn't store message metadata, as with JDBC. System messages are left out of this check, because they are always moved to the front; the exact-text duplicate of a stored one is dropped. Only each round's trailing user/tool-response message and the model's reply are persisted, so nothing is stored twice either. You don't need .disableInternalConversationHistory() on the tool-calling advisor.

Set .order(n) below the tool-calling advisor's order if SessionMemoryAdvisor should instead wrap the loop and write to the session once, after tool results are resolved.

Idempotent session-event ids¶

By default every persisted event gets a random id, so a retried write always creates a new event. Configure requestEventIdGenerator/responseEventIdGenerator to derive a deterministic id instead — a retry with the same id becomes a no-op (see Idempotent appendEvent):

IdempotentSessionEventIdGenerator idGenerator = new IdempotentSessionEventIdGenerator();

SessionMemoryAdvisor advisor = SessionMemoryAdvisor.builder(sessionService)
    .requestEventIdGenerator(idGenerator)
    .responseEventIdGenerator(idGenerator)
    .build();

IdempotentSessionEventIdGenerator derives each id from two parts:

The message. For tool calls and tool responses it uses the model's tool-call ids. If any of those ids is blank (some providers, such as Ollama, don't assign them), it uses the tool names, arguments and response data instead. For every other message it uses the message text.
A context fingerprint. These are the values of a list of advisor-context keys. The default is just the session id.

Both parts are hashed into an id of the form <messageType>-<sha256>, at most 74 characters, which fits the JDBC VARCHAR(255) column.

Identical messages collide

With the default session-scoped fingerprint, two identical messages anywhere in the same session get the same id, and the second is dropped as a replay. For example, a user answering "yes" twice loses the second "yes". To avoid this, add a context key that changes per request, such as a durable run id. The varargs constructor replaces the default key list, so include the session key yourself:

new IdempotentSessionEventIdGenerator("run-id", SessionMemoryAdvisor.SESSION_ID_CONTEXT_KEY);

To write your own generator, implement SessionEventRequestIdGenerator and/or SessionEventResponseIdGenerator. The defaults are SessionEventRequestIdGenerator.random() and SessionEventResponseIdGenerator.random().

Passing a session ID per request¶

Pass a session ID at call time via the advisor context:

String response = client.prompt()
    .user("Hello!")
    .advisors(a -> a.param(SessionMemoryAdvisor.SESSION_ID_CONTEXT_KEY, "session-abc"))
    .call()
    .content();

If no session exists for the given ID, the advisor creates one automatically using the USER_ID_CONTEXT_KEY value from the request context, falling back to defaultUserId. defaultUserId defaults to "default-user", so set one of them if you later look sessions up by user, e.g. with findByUserId or CrossSessionRecallTools.

Ownership enforcement

When USER_ID_CONTEXT_KEY is present and the session already exists, the advisor checks that the supplied user ID matches session.userId(). A mismatch throws IllegalStateException — this prevents one user from reading or appending to another user's session if session IDs are ever guessable or shared.

The check is skipped when USER_ID_CONTEXT_KEY is absent so that callers which rely solely on defaultUserId (or do their own authorization upstream) are not affected.

client.prompt()
    .user("Hello!")
    .advisors(a -> a
        .param(SessionMemoryAdvisor.SESSION_ID_CONTEXT_KEY, "session-abc")
        .param(SessionMemoryAdvisor.USER_ID_CONTEXT_KEY, "alice")  // enforced
    )
    .call()
    .content();

Context keys¶

Key constant	String value	Purpose
`SESSION_ID_CONTEXT_KEY`	`"chat_memory_conversation_id"` (= `ChatMemory.CONVERSATION_ID`)	Routes the request to a session
`USER_ID_CONTEXT_KEY`	`"chat_memory_user_id"`	Used when auto-creating a session; also enforces ownership on existing sessions when set
`EVENT_FILTER_CONTEXT_KEY`	`"chat_memory_event_filter_id"`	Per-request `EventFilter` merged with the advisor-level filter

Per-request filter override¶

Pass an EventFilter via EVENT_FILTER_CONTEXT_KEY to narrow or adjust history retrieval on a single call without reconfiguring the advisor:

// Advisor is configured with EventFilter.all() (default).
// This request overrides to see only the last 5 events, extended to the start of
// the turn the window lands in so a tool call is never sent without its result.
String response = client.prompt()
    .user("Quick summary please")
    .advisors(a -> a
        .param(SessionMemoryAdvisor.SESSION_ID_CONTEXT_KEY, sessionId)
        .param(SessionMemoryAdvisor.EVENT_FILTER_CONTEXT_KEY, EventFilter.lastN(5))
    )
    .call()
    .content();

EventFilter.merge() semantics: every non-null field from the request filter replaces the corresponding field from the advisor default; the two boolean flags, excludeSynthetic and excludeArchived, are OR-ed so either side can opt in. A request-level lastN or page/pageSize replaces the advisor's retrieval modifier as a whole (see Merging filters). A null value for EVENT_FILTER_CONTEXT_KEY is ignored.

Filtering what gets persisted (`MessageFilter`)¶

While EventFilter controls which stored events are loaded into the next prompt, MessageFilter controls which messages get stored at all. A message rejected by the filter is never persisted and therefore never replayed on later requests. The outgoing prompt is unaffected — filtering applies to persistence only.

	`EventFilter` (read side)	`MessageFilter` (write side)
Applies when	Loading history in `before()`	Appending messages in `before()` / `after()`
Operates on	Stored `SessionEvent`s	`Message`s about to be persisted
Rejected items	Stay in storage, hidden from the prompt	Never written to storage
Tool messages	A tool call or result left without its counterpart is dropped from the prompt	A tool response is stored exactly when its tool call was stored

Configure it on the builder:

SessionMemoryAdvisor advisor = SessionMemoryAdvisor.builder(sessionService)
    // Persist only user and assistant messages (e.g. keep verbose tool
    // responses out of the session log), still skipping empty frames.
    .messageFilter(
        MessageFilter.byMessageType(MessageType.USER, MessageType.ASSISTANT)
            .and(MessageFilter.skipEmptyMessages())
    )
    .build();

Built-in factories:

Factory	Behavior
`MessageFilter.all()`	Persists every message (no filtering)
`MessageFilter.skipEmptyMessages()`	Skips assistant messages with blank/null text, no tool calls, and no media (the default)
`MessageFilter.byMessageType(types...)`	Persists only the listed `MessageType`s. Leaving out `TOOL` does not strand a stored tool call: its response is stored anyway (see Tool-call integrity)
`MessageFilter.containsText(keyword)`	Persists only messages whose text contains the keyword (case-insensitive)

MessageFilter is a @FunctionalInterface, so a lambda works too, and filters compose via and(), or(), and negate():

// Never persist messages containing "confidential"
.messageFilter(
    MessageFilter.containsText("confidential").negate()
        .and(MessageFilter.skipEmptyMessages())
)

Compose, don't replace

Setting a custom messageFilter replaces the default skipEmptyMessages() protection. If you still want empty assistant frames filtered out (recommended — some models reject them when replayed as history), compose your filter with it via .and(MessageFilter.skipEmptyMessages()).

Tool-call integrity¶

Every provider rejects a prompt in which an assistant message with tool calls is not followed by the tool messages answering it (OpenAI: "An assistant message with 'tool_calls' must be followed by tool messages responding to each 'tool_call_id'"). The advisor keeps that from happening at both ends, without touching the log:

Windows keep turns whole. A lastN window is extended by the repository to the start of the turn it lands in, so a tool call is never read without its results. See Windows keep turns whole.
Read guard. After loading the history, an assistant tool call whose calls are not all answered by the tool messages that directly follow it (in the history or in the prompt itself, as in round 2 of a tool loop) is dropped from the prompt, and so is a tool message that answers no preceding call. A partially answered parallel call is dropped with its answers. The advisor logs a WARN naming the likely causes: a messageTypes read filter hiding TOOL events, a MessageFilter that skipped them, or a turn interrupted between the call and its result.
Write guard. A trailing tool response is stored exactly when the tool call it answers is the newest stored event: the MessageFilter is overridden, with a WARN, when it would reject the response of a stored call or accept the response of a call it rejected. When the events read cannot tell (a messageTypes filter hiding assistant events, or a page window), the filter decides.

Concurrent compaction safety¶

Concurrent after() calls on the same session (e.g. parallel fan-out) may both compact; the optimistic compare-and-swap makes the loser skip silently, so no compacted result is lost or corrupted.

Scheduler pinning¶

Both the blocking (advise()) and streaming (adviseStream()) paths run before() and after() on the configured Scheduler (default: BaseAdvisor.DEFAULT_SCHEDULER). In adviseStream(), a second .publishOn(scheduler) is applied after .flatMapMany(chain::nextStream) so that the aggregation callback and compaction always run on the scheduler rather than the LLM streaming thread.
