Session Concepts¶

Spring AI Session introduces four closely related concepts that together describe how a conversation is stored, structured, and managed over time.

Session¶

Session is the identity and lifecycle container for a single, continuous conversation between a user and an agent. It is an immutable value object — it holds only metadata. The event log is stored separately in the repository and fetched on demand.

Field	Description
`id`	Unique session identifier
`userId`	Owning user or agent — required, used for isolation
`createdAt`	Creation timestamp
`expiresAt`	Expiry instant. Sessions created through `SessionService.create` always get one: the request's `timeToLive`, or the service's default (60 days, configurable). `null` (no expiry) is only possible for a `Session` built directly with `Session.builder().expiresAt(null)`.
`metadata`	Arbitrary key/value pairs (model info, tags, etc.)

Keeping Session metadata-only means it can be passed across boundaries cheaply and stays immutable: every event mutation goes through dedicated repository methods (appendEvent, applyCompaction), and compaction strategies receive the event list as an explicit parameter.

Sessions are created through SessionService, which is the primary API for the entire lifecycle:

SessionService service = DefaultSessionService.builder()
    .sessionRepository(InMemorySessionRepository.builder().build())
    .build();

Session session = service.create(
    CreateSessionRequest.builder()
        .id("my-session-id")           // optional; a UUID is generated when omitted
        .userId("alice")
        .timeToLive(Duration.ofHours(2)) // optional; defaults to 60 days
        .metadata("agentType", "research-assistant")
        .build()
);

SessionEvent¶

SessionEvent is an immutable value object that wraps a Spring AI Message type. It adds only what Message intentionally omits: identity, ownership, ordering, and framework flags.

Field	Description
`id`	Unique identity per event (UUID by default)
`sessionId`	Ownership / isolation
`timestamp`	Chronological ordering (`Instant.now()` by default)
`message`	The Spring AI message — no duplication of content
`metadata`	Framework flags such as `METADATA_SYNTHETIC` and `METADATA_COMPACTION_SOURCE`
`archived`	`true` once compaction has moved the event out of the active window; it stays in the log and remains searchable (see Event lifecycle)

Message types¶

Message type	`SessionEvent.isSynthetic()`	Meaning	Compaction
`UserMessage`	`false`	Real user input. It starts a turn	Archived with its turn
`AssistantMessage` (no tool calls)	`false`	Agent response	Archived with its turn
`AssistantMessage` (with tool calls)	`false`	Agent tool invocation	Archived with its turn, never separated from its tool results
`ToolResponseMessage`	`false`	Tool output	Archived with its turn
`SystemMessage`	`false`	A stored system prompt: configuration, not conversation. Storing one is opt-in	The latest one is kept; earlier ones are archived. Never summarized. See System Messages
`UserMessage`	`true`	Synthetic shadow prompt opening a summary turn	Kept by the sliding-window, turn-window and token-count strategies. Archived by the next recursive summary, which replaces it
`AssistantMessage`	`true`	Synthetic summary text closing a summary turn	As above. Its text is fed to the next recursive summary as the prior summary
`SystemMessage`	`true`	Legacy summary format from earlier versions	As above. Still read as a prior summary by the recursive strategy

With RecursiveSummarizationCompactionStrategy, real events other than system messages are summarized before they are archived.

Building events¶

// Timestamped at Instant.now()
SessionEvent event = SessionEvent.builder()
    .sessionId(sessionId)
    .message(new UserMessage("Hello"))
    .build();

// With metadata
SessionEvent custom = SessionEvent.builder()
    .sessionId(sessionId)
    .message(new AssistantMessage("Response"))
    .metadata("model", "gpt-4o")
    .metadata("latencyMs", 230)
    .build();

// Deterministic timestamp (useful for tests)
SessionEvent deterministic = SessionEvent.builder()
    .sessionId(sessionId)
    .timestamp(Instant.parse("2025-06-01T12:00:00Z"))
    .message(new UserMessage("Hello"))
    .build();

Builder defaults: id is a random UUID, timestamp is Instant.now(), metadata is empty. Only sessionId and message are required.

Turn¶

A turn is the atomic unit of conversation:

One UserMessage plus all subsequent events (assistant replies, tool calls, tool results) up to the next UserMessage.

Working with turns rather than raw message counts prevents compaction from splitting a tool-call/result pair, or from removing an assistant reply while keeping the user question that prompted it. Reads follow the same rule: a lastN window is extended back to the start of the turn it lands in (SessionEvent.isTurnStart() marks the USER events), so a prompt built from a window never begins mid-turn either. See Windows keep turns whole.

Turn 1: [USER "What is Spring AI?"]  [ASSISTANT "Spring AI is..."]
Turn 2: [USER "Can it use tools?"]   [ASSISTANT (tool call)]  [TOOL result]  [ASSISTANT "Yes, ..."]
Turn 3: [USER "Show me an example"]  [ASSISTANT "Here is..."]

Turn count is measured via CompactionRequest.currentTurnCount(), which counts the non-synthetic USER events. The shadow prompt of a synthetic summary turn is excluded, so it does not inflate the count used by TurnCountTrigger.

Synthetic Summary Turn¶

When RecursiveSummarizationCompactionStrategy compacts a session it replaces archived events with two synthetic events that form a coherent conversation turn:

[USER  / synthetic] "Summarize the conversation we had so far."
[ASST  / synthetic] "The user asked about topic X. The assistant explained..."
[USER  / real     ] "Next actual question"
[ASST  / real     ] "Next actual response"

This mirrors the OpenAI Agents SDK shadow-prompt pattern and ensures that downstream models always see a valid user↔assistant alternation.

All compaction strategies set synthetic events and stored system messages aside before processing real events (for system messages, see System Messages). The sliding-window, turn-window and token-count strategies keep synthetic events unchanged, where they are in the log. RecursiveSummarizationCompactionStrategy instead folds the previous summary into the new one and replaces it: the superseded synthetic events are archived in place, like the real events they summarized.

Build a synthetic summary turn explicitly:

Instant now = Instant.now();
List<SessionEvent> summaryTurn = List.of(
    SessionEvent.builder()
        .sessionId(sessionId)
        .timestamp(now)
        .message(new UserMessage("Summarize the conversation we had so far."))
        .metadata(SessionEvent.METADATA_SYNTHETIC, true)
        .metadata(SessionEvent.METADATA_COMPACTION_SOURCE, "recursive-summarization")
        .build(),
    SessionEvent.builder()
        .sessionId(sessionId)
        .timestamp(now)
        .message(new AssistantMessage("The user asked about X. The assistant..."))
        .metadata(SessionEvent.METADATA_SYNTHETIC, true)
        .metadata(SessionEvent.METADATA_COMPACTION_SOURCE, "recursive-summarization")
        .build()
);

Both events share the same Instant so the user/assistant pair is treated as an atomic unit.

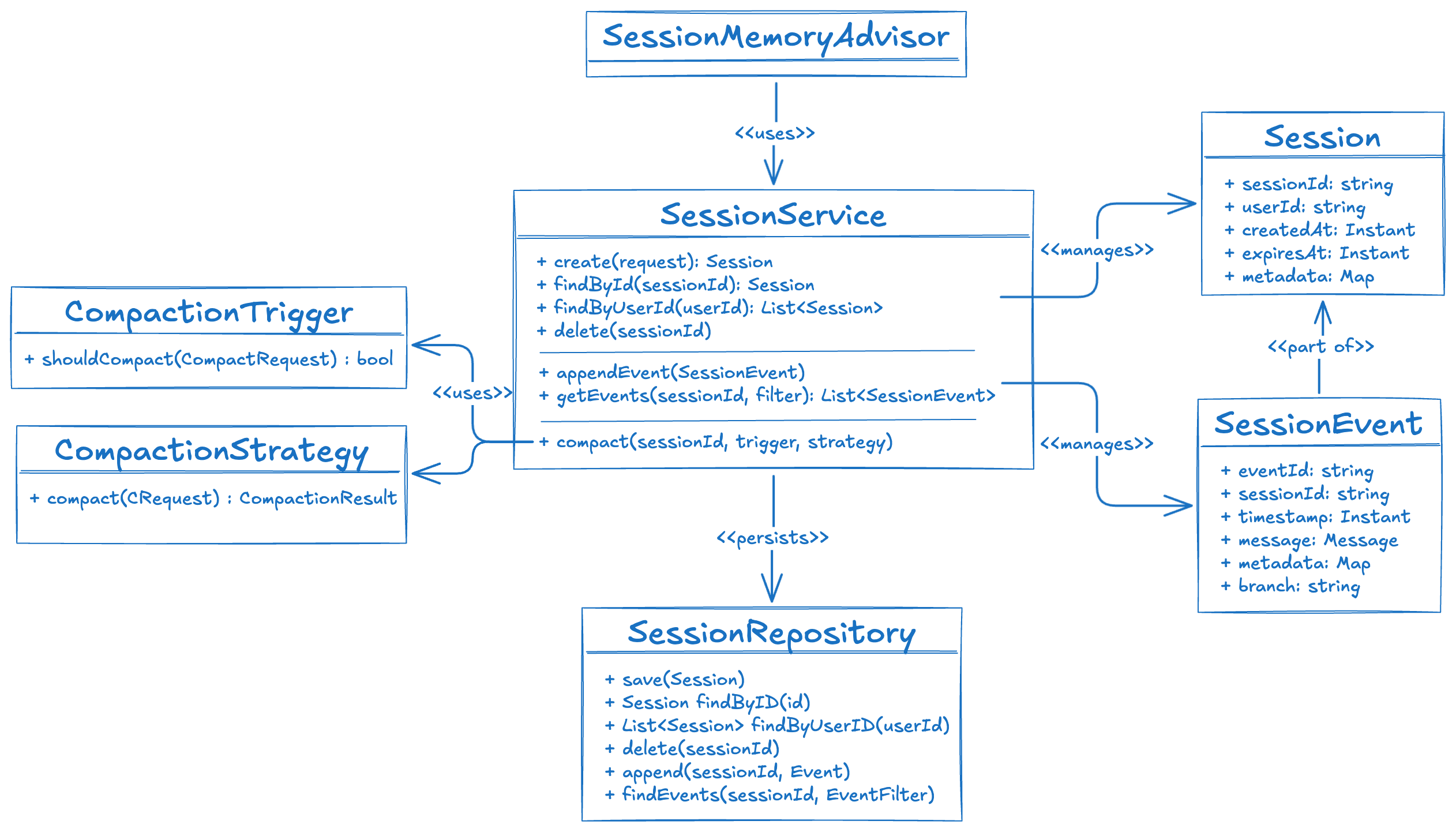

Architecture Overview¶

The core model and API. Compaction types are covered separately in How Compaction Works.

classDiagram
    direction TB

    class SessionService {
        <<interface>>
        +create(request) Session
        +findById(id) Session
        +appendEvent(event)
        +getEvents(id, filter) List
        +getActiveMessages(id) List
        +compact(id, trigger, strategy) CompactionResult
        +deleteExpiredSessions(before) int
    }
    class DefaultSessionService
    class SessionRepository {
        <<interface>>
        +save(session) Session
        +saveIfAbsent(session) boolean
        +findById(id) Session
        +deleteExpiredSessions(before) int
        +appendEvent(event)
        +findEvents(id, filter) List
        +findEventsByUserId(userId, filter) List
        +getEventVersion(id) long
        +applyCompaction(id, plan, version) boolean
    }
    class InMemorySessionRepository
    class JdbcSessionRepository

    class Session {
        id
        userId
        createdAt
        expiresAt
        metadata
    }
    class SessionEvent {
        id
        sessionId
        timestamp
        message
        metadata
        archived
        +isSynthetic() boolean
    }
    class Message {
        <<Spring AI>>
    }
    class EventFilter {
        <<record>>
        +all()$ EventFilter
        +active()$ EventFilter
        +keywordSearch(keyword)$ EventFilter
    }

    SessionService <|.. DefaultSessionService
    DefaultSessionService --> SessionRepository : persists through
    SessionRepository <|.. InMemorySessionRepository
    SessionRepository <|.. JdbcSessionRepository
    SessionService ..> Session : manages
    SessionService ..> SessionEvent : manages
    SessionService ..> EventFilter : queries with
    SessionEvent "*" --> "1" Session : belongs to (by sessionId)
    SessionEvent --> Message : wraps

Event lifecycle¶

An event is appended once and never edited. Its content never changes; only its state does:

stateDiagram-v2
    direction LR
    [*] --> Active : appendEvent
    Active --> Archived : compaction archives it
    Active --> Deleted : session deleted or expired
    Archived --> Deleted : session deleted or expired
    Deleted --> [*]

    note right of Active : sent to the model (EventFilter.active)
    note right of Archived : kept and searchable, not sent to the model

Active: part of the active context window. Appending an event with an id that already exists is an idempotent replay and changes nothing.
Archived: compaction moved it out of the active window, for example an old turn, a stored system message superseded by a newer one, or a synthetic summary that a newer summary replaces. The latest stored system message always stays active.
Deleted: gone from the log. This only happens when the whole session is deleted (delete, or deleteExpiredSessions for expired sessions). Compaction never deletes.

Archiving instead of deleting

Compaction marks the real events it removes from the active window as archived (SessionEvent.isArchived()) via applyCompaction, so the full verbatim history stays in the log. What an integration sends to the model is the EventFilter.active() view, while Recall Storage searches (EventFilter.keywordSearch(...)) span the whole log, archived events included. This makes the MemGPT recall pattern work: the agent can surface any prior exchange after it has been compacted out of context. A replaced synthetic summary is archived too, so the log also shows what the model was told before each pass. The Recall Storage tools leave synthetic events out of their results by default, because a summary only paraphrases real events that are still in the log.

In the JDBC repository, newly archived events are flagged with an in-place UPDATE. Compaction never reorders the log: only when a summary is inserted is the part of the log after it re-inserted, so the archived history before that point (normally all of it) is never re-read or re-written.

Optimistic concurrency¶

SessionRepository.getEventVersion(sessionId) is a monotonically increasing counter, incremented on every appendEvent that appends a new event and on every successful applyCompaction call. DefaultSessionService.compact reads it before fetching the active events, turns the strategy's result into a CompactionPlan (which events to archive, which new events to insert before which existing event) and passes both to applyCompaction(sessionId, plan, expectedVersion). If another writer changed the log in between, this compare-and-swap (CAS) returns false, and the caller treats it as a no-op rather than retrying. Durable implementations should map it to a database-level optimistic-lock column, as the JDBC repository does; a Redis implementation, for example, would use WATCH.

Idempotent appendEvent¶

A retried appendEvent call for an id that was already committed is a no-op, not an error or a duplicate, and does not increment the event-log version. InMemorySessionRepository checks the session's events for the id before appending. JdbcSessionRepository inserts and treats a primary-key violation on the event id as a replay.

In JDBC the event id is the primary key of the whole AI_SESSION_EVENT table, not just of one session. Reusing an id that already belongs to a different session throws IllegalStateException instead of being treated as a replay, so event ids should be unique across sessions. The default id is a random UUID, so this only matters when a caller supplies its own deterministic ids. See SessionMemoryAdvisor's pluggable id generators.

Event ordering

Events are returned in insertion (logical conversation) order, not by wall-clock timestamp. The JDBC implementation persists a monotonic seq column for this purpose so that a synthetic compaction summary — stamped with the compaction time — stays correctly positioned ahead of the older active-window events it precedes.

Implementing a `SessionRepository`¶

The contract follows one rule: the backend owns selection, core owns interpretation. Filtering, paging and searching are the backend's job, because their cost grows with the size of the log. What a compaction means (turn boundaries, ordering, what a summary replaces) is decided in core and handed to the backend as plain write operations, so no backend has to reimplement it. Core ships three helpers for this, and a test kit that checks the whole contract.

Reads push the filter down. findEvents(sessionId, filter) must not read the whole log for a lastN or a page. Evaluate excludeArchived, excludeSynthetic, messageTypes, the time range, lastN, page/pageSize and, where the store can, the keywords in the query itself. EventFilter.apply(List) is the reference implementation of the read contract for a log held as a list; use it only for what the store cannot express, as the JDBC repository does for pattern (a Java regex cannot be translated to portable SQL). A lastN window must keep turns whole: when its oldest event is not a USER event, extend it back to the nearest preceding one among the matching events, unless the filter searches text or no such event exists (EventFilter.applyTurnAwareWindow spells out the rule; the JDBC repository does it with one bounded extra query). The contract kit checks this on every store. findEventsByUserId(userId, filter) has a default that loops over the user's sessions and windows the union in memory; a store that can join sessions and events should override it with one sorted, paged query.

Messages have one persisted shape. SessionEventCodec encodes a Message into its type, text and a JSON data payload (tool calls or tool responses), and decodes it back. Stores that keep columns or fields use it so every backend stores the same thing.

Compaction is a plan. applyCompaction(sessionId, plan, expectedVersion) receives a CompactionPlan with two parts: archiveIds to flag archived in place, and inserts, each a group of new events that goes immediately before an existing anchor event, or at the end when the anchor is null. Existing events never move and are never removed. CompactionPlan.applyTo(log) is the reference merge for a log held as a list; list-based stores can call it directly.

Run the contract tests. The spring-ai-session-test artifact contains AbstractSessionRepositoryContractTests, the suite the built-in in-memory, H2, PostgreSQL and MySQL repositories run. Subclass it and provide a repository:

<dependency>
    <groupId>org.springaicommunity</groupId>
    <artifactId>spring-ai-session-test</artifactId>
    <scope>test</scope>
</dependency>

class MySessionRepositoryContractTests extends AbstractSessionRepositoryContractTests {

    @Override
    protected SessionRepository createRepository() {
        return new MySessionRepository(/* a fresh or emptied store */);
    }

}

It covers idempotent append, the version rules, saveIfAbsent under concurrent creates, expiry cleanup, every filter criterion and window, and every compaction rule (archive in place, insert before an anchor, append, stale version, unknown ids).

Session Lifecycle¶

A session from creation to cleanup, driven by any integration: your own agent loop, or SessionMemoryAdvisor, which performs the per-turn steps automatically for ChatClient (see ChatClient Integration).

sequenceDiagram
    autonumber
    participant App as App / integration
    participant Svc as SessionService
    participant Repo as SessionRepository
    participant LLM as Model

    App->>Svc: create(CreateSessionRequest)
    Svc->>Repo: saveIfAbsent(session)
    Repo-->>Svc: inserted (fails if the id exists)
    Svc-->>App: Session

    loop every turn
        App->>Svc: getActiveMessages(id)
        Svc->>Repo: findEvents(id, EventFilter.active())
        Repo-->>Svc: active events
        Svc-->>App: active window (archived events excluded)
        App->>LLM: system prompt (supplied per request) + active window + user message
        LLM-->>App: reply
        App->>Svc: appendMessage(id, user message), appendMessage(id, reply)
        Svc->>Repo: appendEvent(...)
        opt the compaction trigger fires
            App->>Svc: compact(id, trigger, strategy)
            Svc->>Repo: getEventVersion, findEvents, applyCompaction(plan) (CAS)
            Note over Repo: old events archived, still searchable
        end
    end

    Note over App,Repo: later, from a scheduler
    App->>Svc: deleteExpiredSessions(now)
    Svc->>Repo: deleteExpiredSessions(now)
    Note over Repo: the session and all its events are removed

// 1. Create (service built as in the Session section above)
Session session = service.create(
    CreateSessionRequest.builder()
        .userId("alice")
        .build()
);

// 2. Append events (shorthand wraps a Message in a SessionEvent automatically)
service.appendMessage(session.id(), new UserMessage("What is Spring AI?"));
service.appendMessage(session.id(), new AssistantMessage("Spring AI is..."));

// 3. Retrieve the active context window as a Message list (for passing to an LLM)
List<Message> history = service.getActiveMessages(session.id());

//    ...or the full recorded history, including events archived by compaction
List<Message> fullHistory = service.getMessages(session.id());

// 4. Retrieve as SessionEvent list (for filtering, inspection, compaction)
List<SessionEvent> events = service.getEvents(session.id());

// 5. Delete a single session
service.delete(session.id());

// 6. Delete all expired sessions (call from a scheduler)
int removed = service.deleteExpiredSessions(Instant.now());

Deleted sessions are removed from the repository entirely — there is no tombstone state.

Expiry cleanup¶

Sessions are not automatically swept — deleteExpiredSessions(Instant) must be called explicitly. Wire it to a scheduler in your application:

@Scheduled(fixedRate = 3_600_000) // every hour
void sweepExpiredSessions() {
    int removed = sessionService.deleteExpiredSessions(Instant.now());
    log.info("Swept {} expired sessions", removed);
}

deleteExpiredSessions deletes all sessions whose expiresAt is before the supplied instant, together with their events, and returns the count of sessions removed. The built-in repositories check the expiry and delete in one atomic step, so a session whose TTL was extended concurrently is kept.
