Tokens & Cost

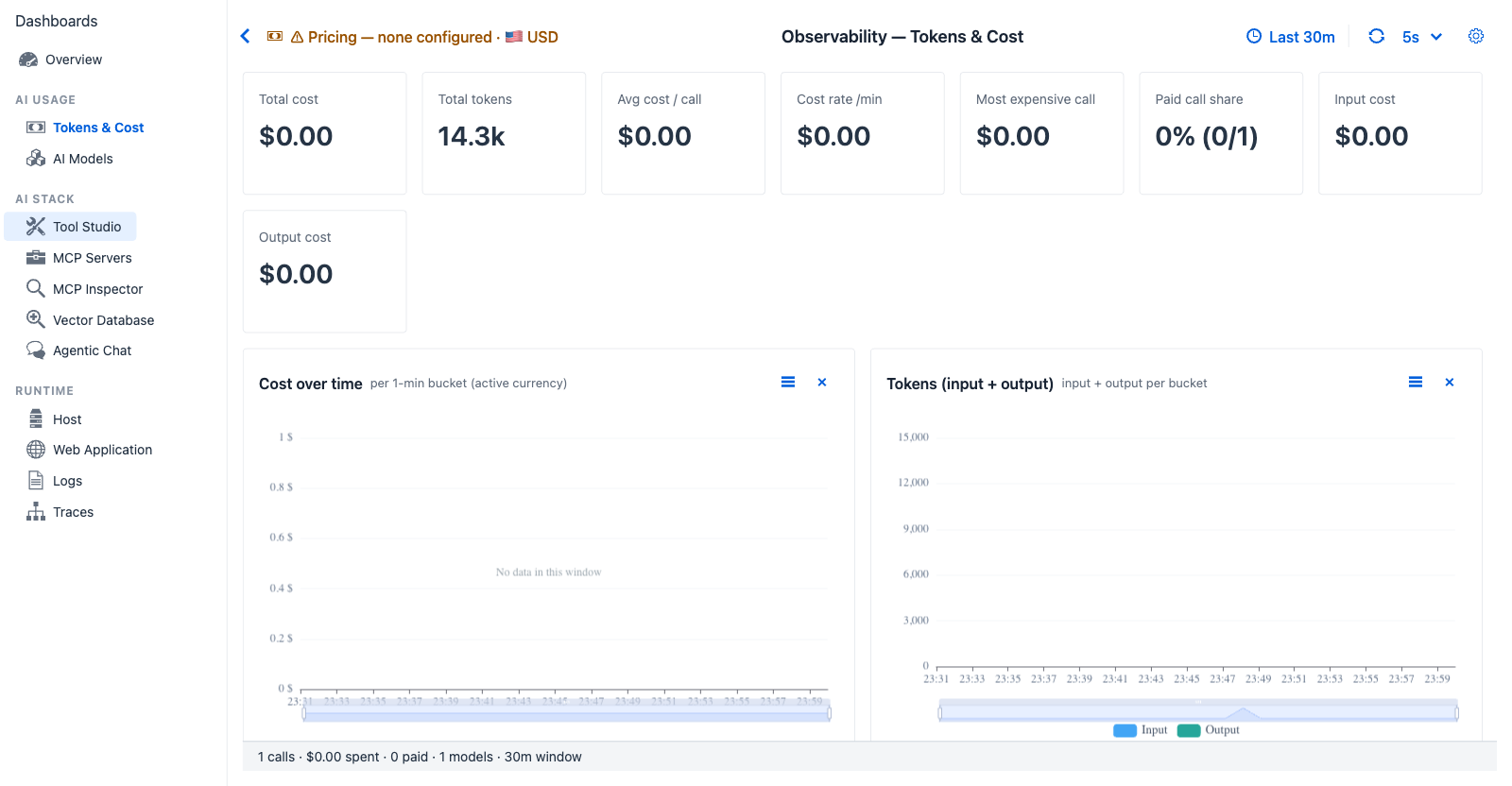

Tokens & Cost dashboard — Pricing chip at top, eight KPI cards (Total cost, Total tokens, Avg cost / call, Cost rate /min, Most expensive call, Paid call share, Input cost, Output cost), and charts: Cost over time area, Tokens stacked bar, Cost by provider donut, Cost by model and Tokens by model horizontal bars

Tokens & Cost — when no per-model pricing has been configured (warning chip top-left), the Cost panels show $0 across the board while the token-volume panels still surface model and provider mix. Each chat turn appears as a vertical bar on the Tokens (input + output) chart.

Purpose — track token spend and money spend per turn, per model, per provider. Answer "is this model worth what it costs" and "are we trending over budget."

When to look here

  • "Did my conversation cross a dollar budget?" — Total cost + Cost rate /min give a rolling burn rate.
  • "Which model is dominating cost?" — Cost by model horizontal bar (top 8) makes the heaviest spender obvious.
  • "Am I sending too much input vs output?" — Input cost vs Output cost split surfaces over-stuffed contexts.
  • "Was that one outlier turn a runaway?" — Most expensive call + the Top-10 expensive traces grid catch isolated spikes.
  • "What share of my traffic is free vs paid?" — Paid call share (e.g. 0/5 → all local-model traffic).

Controls

All dashboards share the Observability global settings — time window, refresh interval, custom range. Tokens & Cost adds one tab-specific control:

  • Pricing chip at the top — opens the Model Pricing Manager dialog where you set per-model rates and switch the active display currency. See the dedicated section below.

KPI cards (eight)

Card Shows Source
Total cost Sum of cost across the window in the active currency ModelPricingService.cost(model, input, output) summed across TraceRecords, then converted by CurrencyService
Total tokens Sum of input + output tokens TraceRecord.totalTokens (falls back to inputTokens + outputTokens when total is null)
Avg cost / call Total cost ÷ trace count in window Derived
Cost rate /min Total cost ÷ window minutes Derived
Most expensive call Maximum cost of a single trace max(cost) over the window
Paid call share Calls whose model has a pricing entry over total — e.g. 0% (0/5) when all traffic is local Ollama Comparison against configured pricing entries
Input cost Cost contribution from input tokens only inputTokens × inputPerMillionTokens summed
Output cost Cost contribution from output tokens only outputTokens × outputPerMillionTokens summed

Charts (five)

Chart Type Reading
Cost over time Area, per-minute, active currency Sustained climb during quiet hours hints at scheduled paid workloads; flat line under all-local models confirms zero-cost operation
Tokens (input + output) Stacked bar, 2-series per bucket One bar per turn — input dwarfing output is expected for tool-using prompts
Cost by provider Donut, active currency, top 6 providers Single-color donut (one provider) confirms the conversation never spilled to a second backend
Cost by model Horizontal bar, top 8 by cost, active currency When pricing is missing, the bar still renders by traffic; it is the same shape as Tokens by model below — a hint that pricing should be configured
Tokens by model Horizontal bar, top 8 by total tokens Independent of pricing — always shows model traffic

Tables

Per-model breakdown grid — Model · Calls · In tok · Out tok · Cost · Avg / call. Sortable by any column. The Cost column is hidden when pricing has not been configured (a dim — placeholder appears instead).

Top 10 most expensive traces — Time · Model · In · Out · Cost · Trace. Each row is the click-through to the Trace Detail dialog for that single turn. Useful when one outlier dragged the average up.

Configuring cost — Model Pricing Manager dialog

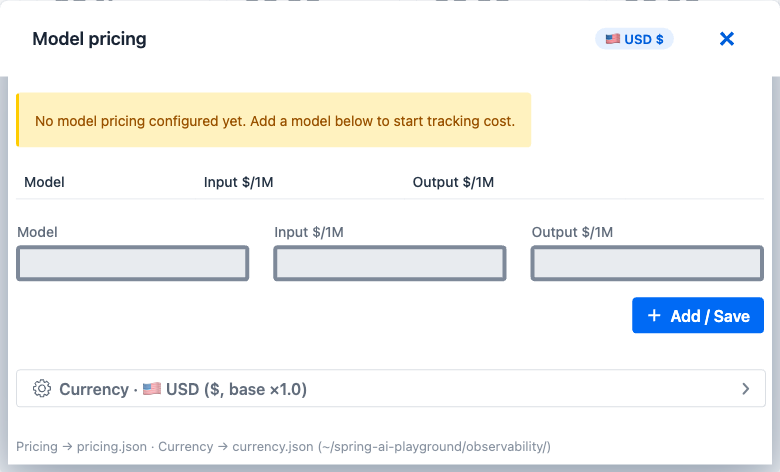

Model Pricing Manager dialog — header "Model pricing" with active-currency chip (USD $), warning banner when no pricing is configured, three-column editor (Model / Input $/1M / Output $/1M) with + Add / Save button, expandable Currency row, footer noting the configuration is persisted automatically

Model Pricing Manager dialog — the single UI surface for configuring per-model rates and display currency. Two sections: per-model pricing editor (top) and currency selector (bottom). All edits persist automatically; there is no other supported way to configure cost.

How to open — click the Pricing chip at the top of this dashboard (Model pricing + display currency / exchange rate; reads ⚠ Pricing — none configured · 🇺🇸 USD when nothing is set).

What you can change

Section Contents
Active currency chip Top-right USD $ (or other active currency). Click to expand the currency editor below.
Status banner Yellow No model pricing configured yet when empty; hidden otherwise.
Existing rows One row per pricing entry — Model · Input $/1M · Output $/1M · Delete
New row Empty input row at the bottom for adding a model
+ Add / Save Persists the row (or all edits) in the background. The dashboard refreshes within seconds.
Currency section Expandable — opens the active currency selector + base × rate display + per-currency editor for 40+ shipped currencies

Adding a model rate

  1. Type the model identifier exactly as it appears in the AI Models dashboard (e.g. gpt-4o-mini, claude-3-5-sonnet) — matching is exact-string, no patterns or aliases.
  2. Enter Input $/1M — the USD rate per million input tokens (provider's published rate).
  3. Enter Output $/1M — the USD rate per million output tokens.
  4. Click + Add / Save. The new row appears immediately and this dashboard recomputes within seconds.

Switching display currency

  1. In the dialog, click the Active currency chip (top-right) to expand the currency section.
  2. Pick a code from the dropdown (USD, EUR, KRW, JPY, and 40+ others).
  3. Click Save. Every dollar figure in the dashboards re-renders with the new symbol and the active per-USD rate.

Updating a currency's exchange rate

The dialog's per-currency editor lets you adjust the × rate value for any shipped currency. Defaults are reasonable starting points but not live — keep them current through the dialog.

Missing model handling

When a trace's model field has no pricing entry, cost evaluates to zero, not an error. This is intentional: local / open-weight models (Ollama, llama.cpp, vLLM, …) flow through the dashboards without forcing a "$0" rate to be configured for them.

Persistence semantics

Saved edits become visible on the next dashboard refresh and survive restarts. Pricing and currency configuration are owned entirely by this dialog — there is no other supported way to change them.

How cost is computed

For every TraceRecord in the active window:

cost = inputPerMillionTokens × inputTokens / 1_000_000
     + outputPerMillionTokens × outputTokens / 1_000_000

BigDecimal, 6-decimal precision, HALF_UP rounding. The result is converted to the active currency only at render time — the TraceRecord itself stays in USD-neutral token counts. Trace records are pricing- and currency-neutral; changing pricing or currency does not rewrite history, it changes how history is interpreted on the next refresh.

Worked example

Configure gpt-4o-mini at OpenAI's published rate (0.15 USD input / 0.60 USD output per 1M tokens), then run one chat turn that consumes 4 000 input tokens and 200 output tokens:

input cost  = 0.15 × 4000 / 1_000_000 = 0.0006 USD
output cost = 0.60 ×  200 / 1_000_000 = 0.00012 USD
total       = 0.00072 USD

What shows up where:

Surface Value
Total cost KPI $0.00 (the underlying BigDecimal is 0.00072; the dashboard displays at 2-decimal precision)
Avg cost / call KPI Same row, divided by 1
Paid call share KPI 100% (1/1) — gpt-4o-mini has a pricing entry
Per-model breakdown grid → gpt-4o-mini row Calls 1 · In tok 4000 · Out tok 200 · Cost $0.00 · Avg / call $0.00
Overview → Cost (USD) KPI $0.00

Switch active currency to KRW (× 1340): every cost number above is multiplied by 1340 and the $ symbol is replaced with ₩. Trace records are unchanged.

The Paid call share KPI is the operator-facing summary of who paid for traffic in this window:

paid share = (TraceRecords whose model has a pricing entry) / (total TraceRecords in window)
Reading Interpretation
0% (0/N) All traffic was local / open-weight; no paid provider invocations
100% (N/N) Every call hit a paid model — verify against budget
Mixed Confirm whether the routing strategy intends mixed model use

This is intentionally a count-based share, not a cost-based share — a single expensive paid call alongside many free calls still reads as 1/N, surfacing the mix as a count rather than as a dollar weight (the dollar weight is already visible on the cost KPIs).

Drilldowns

  • Row click in the Top 10 most expensive grid → opens the Trace Detail dialog for that turn.
  • Pricing chip → opens the Model Pricing Manager dialog.
  • Currency selector in the pricing chip → opens the same dialog scrolled to the currency editor.
