Web Application

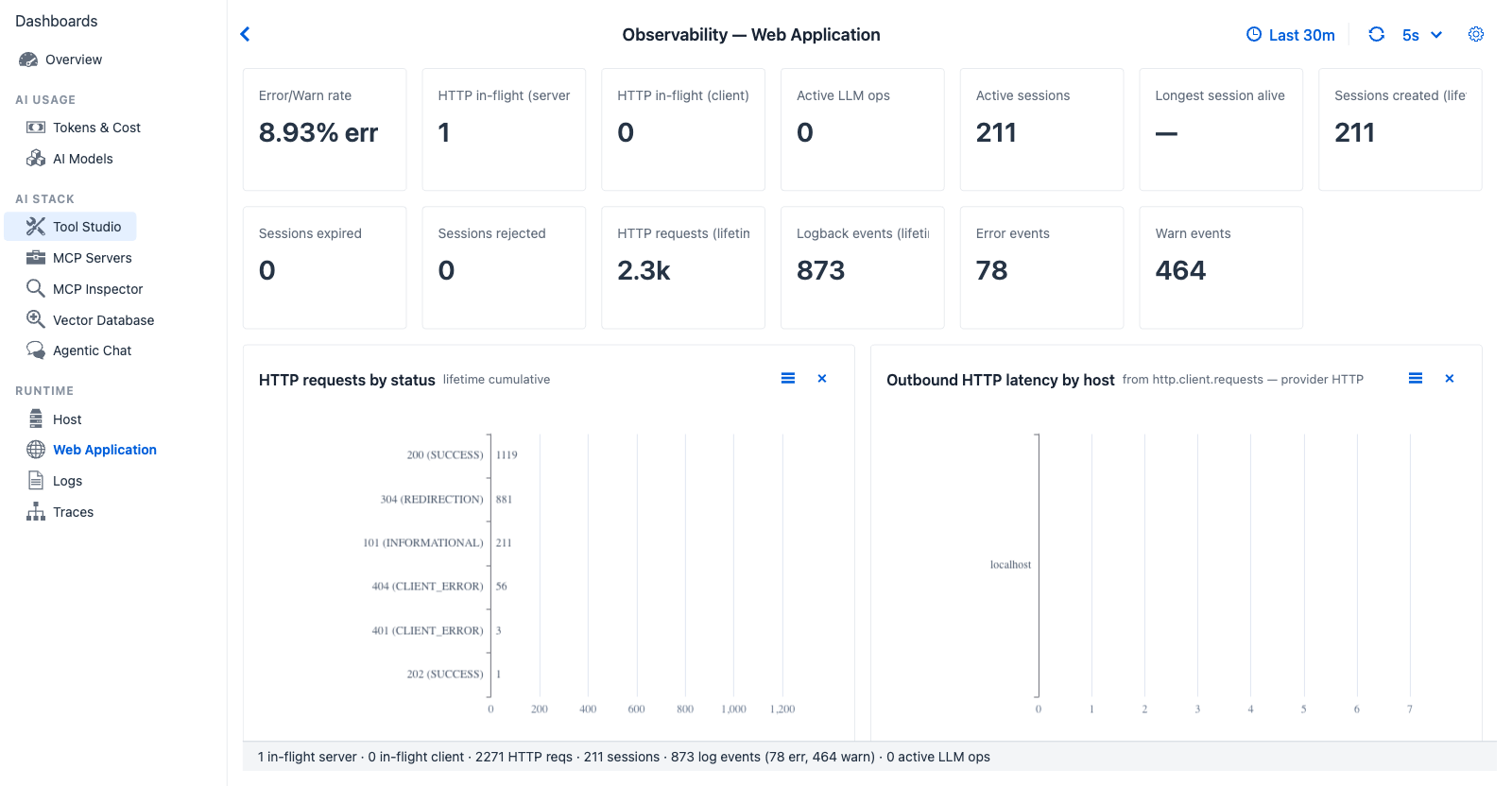

Web Application dashboard — thirteen KPI cards (HTTP in-flight server, HTTP in-flight client, Active LLM ops, Active sessions, Longest session alive, Sessions created lifetime, Sessions expired, Sessions rejected, HTTP requests lifetime, Logback events lifetime, Error events, Warn events, Error/Warn rate) and four charts (HTTP requests by status, Outbound HTTP latency by host, Logback events by level, Active LLM operations)

Web Application — direct MeterRegistry read (no historization through SystemMetricsCollector). The Active LLM ops gauge tracks in-flight ChatClient / Advisor / VectorStore operations as the agent runs.

Purpose — Servlet container, HTTP traffic, logback level counts, and live Spring AI in-flight operations. Different from Host because these metrics are operational traffic signals (rate, in-flight counts, status distribution), not resource consumption.

When to look here

  • "Is something blocking HTTP threads?" — HTTP in-flight (server) gauge climbing without proportional throughput.
  • "How many concurrent provider calls are in flight right now?" — HTTP in-flight (client) — outbound HTTP to model providers.
  • "How many LLM operations are running this second?" — Active LLM ops gauge (ChatClient + Advisor + VectorStore active LongTaskTimers).
  • "Are sessions piling up?" — Active sessions + Longest session alive.
  • "Did we hit a wave of 4xx / 5xx responses?" — HTTP requests by status chart.
  • "Is the WARN/ERROR rate climbing?" — Warn / Error event KPIs + Logback events chart.

Data source

Direct MeterRegistry read (no parallel pipeline — values are live-instant, not historized through SystemMetricsCollector).

Controls

Web Application reads the Observability global refresh interval and ignores the time window — gauges are live, counters are lifetime-cumulative. No tab-specific controls.

KPI cards (thirteen)

Card Shows Source
HTTP in-flight (server) Servlet requests currently being handled tomcat.threads.busy or LongTaskTimer active count
HTTP in-flight (client) Outbound HTTP requests in flight (to model providers, MCP servers) http.client.requests active LongTaskTimer
Active LLM ops In-flight Spring AI operations Active LongTaskTimers for chatClient, advisor, vectorStore
Active sessions Currently active Tomcat sessions tomcat.sessions.active.current
Longest session alive Longest-lived active session age tomcat.sessions.alive.max
Sessions created (lifetime) Cumulative session create count tomcat.sessions.created
Sessions expired Cumulative session expiry count tomcat.sessions.expired
Sessions rejected Cumulative session rejection count tomcat.sessions.rejected
HTTP requests (lifetime) Cumulative HTTP request count http.server.requests count
Logback events (lifetime) Cumulative logback events across all levels logback.events count
Error events Cumulative ERROR-level logback events logback.events{level=ERROR}
Warn events Cumulative WARN-level logback events logback.events{level=WARN}
Error/Warn rate Combined ERROR+WARN rate per minute Derived from above counters

Charts (four)

Chart Type Reading
HTTP requests by status Horizontal bar (2xx / 3xx / 4xx / 5xx, lifetime) Sudden 4xx spike → bad request pattern; 5xx → server-side regression
Outbound HTTP latency by host Horizontal bar (ms by host) The provider hosts your agent talks to most — useful for diagnosing slow providers
Logback events Horizontal bar by level (lifetime) Disproportionate ERROR/WARN → check Logs tab for context
Active LLM operations Horizontal bar by operation type (ChatClient / Advisor / VectorStore) Long-running operation types indicate where the agent is currently blocked

Cross-references
