Human-in-the-Loop Approval¶
Where: set it per tool in Tool Studio → Sandbox & Capabilities → Human-in-the-loop, or per re-exposed tool in the Composed Tools drawer's HITL column. It then takes effect in Agentic Chat and for any external MCP client.
Human-in-the-loop (HITL) pauses a tool call and waits for you to approve or decline before the tool runs. The risk level warns you how dangerous a tool is; the sandbox limits what it can touch; HITL is the gate that asks "run this exact call?" at the moment it would fire.
It is the final safety layer, on top of the tool sandbox and the MCP risk model. The design and internals are on the Human-in-the-Loop Approval architecture page; this page is the how-to.
flowchart LR
CALL["Agent decides<br/>to call a tool"]
GATE{"Tool requires<br/>approval?"}
ASK["Ask the human<br/>Approve / Decline"]
RUN["Run the tool"]
SKIP["Tell the model<br/>it was declined"]
CALL --> GATE
GATE -- "no" --> RUN
GATE -- "yes" --> ASK
ASK -- "Approve" --> RUN
ASK -- "Decline / timeout" --> SKIP
The two modes¶
Every tool has an approval mode:
| Mode | What it does |
|---|---|
| Required - ask every run | The call is gated every time, for both Agentic Chat and external MCP clients. |
| Disabled - no prompt | The tool runs without asking. |
When you author a tool, the mode defaults to Required above L0 and to Disabled at L0 - the more capable a tool, the more it asks out of the box. The bundled default tools set their own mode; most of them run without asking (see below for the ones that ship with Required).
Set approval on a tool you author¶
- Open Tool Studio and select or create a tool.
- Expand Sandbox & Capabilities.
- Under Human-in-the-loop, pick Required or Disabled.
- (Optional) In Approval prompt (optional), write the question shown at approval time.
{toolName}and{args}are substituted at call time - e.g.Run tool '{toolName}' with arguments {args}? - Test & Publish (or Test & Update).
Reducing oversight asks for confirmation
Moving a tool from Required to Disabled opens a Reduce human oversight? confirmation, so you never lower the gate by accident. Disabled lets any client run the tool immediately, with no approval step beyond the sandbox.
Require approval on a re-exposed external tool¶
When you proxy an external tool through the built-in server, each row in the Composed Tools drawer has a HITL toggle:
- Ticking HITL pauses every call to that tool for approval at runtime - the chat approval dialog in Agentic Chat, an MCP elicitation for an external client - and does not let the tool exceed the risk cap.
- It also lowers the tool's displayed risk by one band (a
HITL -1annotation; never belowL1, so a tool already atL0orL1keeps its level), because a human now gates every call - see Composed risk and HITL mitigation. Built-in tools that ship with approval required (the filesystem write and destructive tools, plusextractPageContent,openaiResponseGeneratorandsendSlackMessage) carry the same credit, rendered as a dual chip such asL5 → L4.
You can toggle approval per tool, or for all selected tools at once. The same setting is available in YAML via the hitl: true key on a composed tool - see the Configuration reference.
Approve a call in Agentic Chat¶

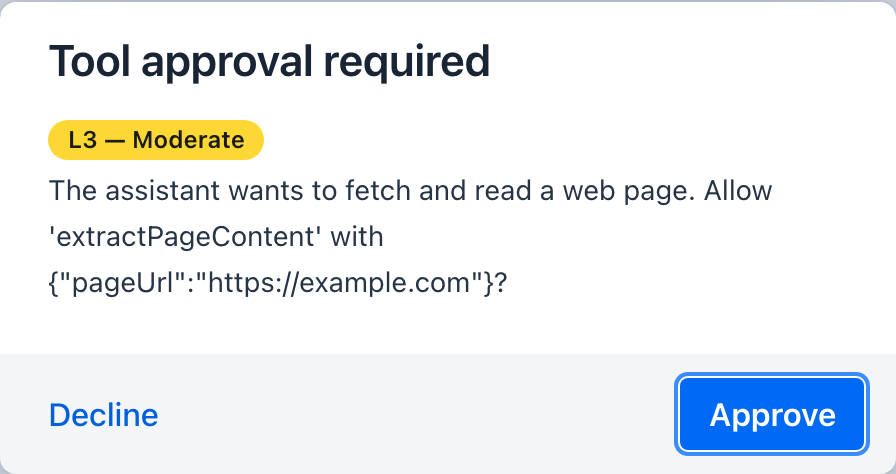

When the agent calls a gated tool, a dialog appears titled Tool approval required with the tool's risk-level chip (hover it for the rationale), the rendered prompt, and two buttons:
- Approve → the tool runs, and the conversation continues with its result.
- Decline → the tool does not run. The model is told you declined so it won't silently retry; it either finds another way or tells you the action couldn't be completed.

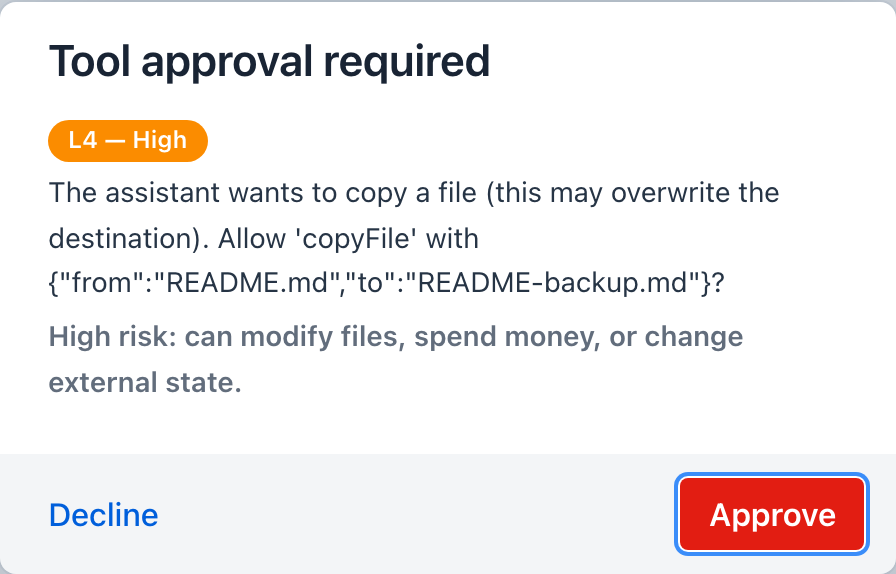

The dialog escalates with the level, so the ask is proportional to what the tool can do:
| Level | What you see |
|---|---|
| L0-L3 | Chip + prompt; standard Approve |
| L4 (High) | Warning line ("can modify files, spend money, or change external state"); Approve turns red |
| L5 (Critical) | Critical warning line; Approve is red and stays disabled until you tick "I reviewed the arguments and accept the risk" |
The level shown is the tool's inherent level (before the HITL -1 display credit) - the dialog itself is the mitigation, so it never discounts the risk it is asking you to accept.
If you don't answer within the approval wait (three minutes by default; a countdown next to Decline shows what is left), or close the dialog, the call is not run - approval fails safe. If the agent requested several gated tools in the same step, they appear together in one dialog with a chip-labeled row per call, so you answer them all at once; ungated calls run without interruption.
Walk through it end to end in Tutorial 11 - Approve a Tool in Chat.
The approval wait¶
Every place that waits for a person shares one wait: spring.ai.playground.hitl.approval-wait-seconds, 180 seconds by default and capped at 240 (see the configuration reference). The chat approval dialog, the chat file-upload and image dialogs, an Inspector call of a HITL tool, the pending cards on the Inspector's Sampling and Elicitation tabs, and the built-in server's approval gate all count down from the same number, and the transport timeouts underneath them are derived from it plus a margin, so raising or lowering it is a single setting change.
While the wait runs you can see the time left:
- Chat approval dialog - a muted
m:ss leftlabel sits beside Decline; when it reaches zero the dialog closes on its own. - Inspector Tools tab - the running tool card shows
Running... answer any Sampling or Elicitation request from its tab while this call waitswith the time left to approve, and the moment the built-in server asks for approval the request appears on that same card with Accept / Decline / Review and its own countdown, so you do not have to find the Elicitation tab yourself. - Inspector Sampling and Elicitation tabs - each pending card shows
m:ss left to answer before this request expires. - External MCP clients - the approval question itself ends with
Answer within 180 s, or the call is refused., and a client that sent aprogressTokenwith the call receives a progress notification every 10 seconds (Waiting for approval: 170 s left) until it answers. MCP elicitation has no deadline field, so these two standard channels are how the limit reaches a client the playground does not control.
A call to an external MCP server from the Inspector does not wait on an approval, so its card counts down the ordinary MCP client request timeout (20 s by default) instead, with left before the call times out.
When the wait expires the outcome is explicit, never a transport error:
- In chat the tool is not run and the model is told
Tool 'x' was not run: no approval within 180 s, so it replies that the action is waiting on you and that you can send the request again. The Safety dashboard counts it as chat / timeout, separate from a decline. - In the Inspector the call returns an error result with the same
no approval within 180 stext, the pending Elicitation card disappears, and the Safety dashboard counts it as server / timeout. An external MCP client that never answers the elicitation gets the same result. - A tool only runs on an explicit Approve in chat, or on Accept with Run this call ticked in an external client; expiry, decline, cancel, an unticked box, Deny and a closed dialog all leave it unexecuted.
What an external client sees¶
For an external MCP client (e.g. Claude Desktop) calling a Required tool on the built-in /mcp server, the built-in server issues an MCP elicitation request - a confirmation card the client renders before the call proceeds. The card carries one checkbox, Run this call, already ticked: Accept runs the tool, and unticking it or Deny refuses. The elicitation message is prefixed with the tool's risk level (for example [risk L5 Critical]), because the elicitation protocol has no severity field of its own. If the client does not support elicitation, the call is denied (it cannot be approved). The playground's own MCP Inspector → Elicitation shows elicitation requests the playground receives while acting as an MCP client; external clients render the built-in server's approval prompt in their own UI.
The management tools ask the same way. When an external AI publishes a tool, changes what the built-in server exposes, registers a server or runs a shipped one, the question arrives in that AI's client as an elicitation that names the client and what will change ([DESTRUCTIVE] codex-mcp-client ... wants to run saip_tools_publish: Publish the tool 'cafe_happy_hour_price' ...), with the same wait and the same fail-safe outcomes. The model never sees the card; it only receives the result after you answered (AI Operations Architecture). Tutorial 19 shows the cards as ChatGPT renders them, and Tutorial 21 the single approval a whole knowledge server needs, for the docker command.
Good defaults¶
- Keep Required for anything that writes, deletes, sends, or spends - irreversible or outward-facing actions are exactly what a person should confirm.
- Leave read-only, local tools Disabled so routine calls don't nag you.
- Review-then-send action cards are a separate pattern. The built-in
sendEmailandaddToCalendartools ship at L0 and need no approval because they only draft - they never send mail or write a calendar. The outward action happens only when you click the button on the action card they render in chat, so that click is itself the human gate. Asend-named tool shipping without an approval prompt is therefore not an exception to the rule above.
Related¶
- Human-in-the-Loop Approval (architecture) - the two gates, loopback de-duplication, and fail-safe internals
- Agent Loop - the round governance this gate runs inside (round bounds, decline memory, the shared approval wait)
- MCP Server Proxy - re-expose external tools with per-tool approval
- Tool Studio - author tools and their sandbox + approval policy
- Agentic Chat - where approvals are answered
- Tutorial 11 - Approve a Tool in Chat
