Default Tools - Visualization & cards¶

The eighteen tools on this page are productivity / visualization tools that turn data into a rich interactive card in the chat instead of plain text. Each one returns a fenced ```saip-action block; the chat front end detects it and renders a real chart, map, diagram, table, diff, or stat row inline in the assistant's message.

They are all free and run at the sandbox L0 baseline (Safest) - pure compute, no network and no filesystem widening. The model only produces a description of what to draw; the rendering happens client-side. They ship in the everything preset.

Chart and map cards (the ECharts- and Leaflet-backed ones) carry PNG export and Copy buttons so a rendered card can be saved as an image or copied straight into another document or message.

How the model uses these

The model calls one of these tools with already-gathered data - e.g. it fetches crypto candles with a Korea/global tool, then calls renderCandlestick to draw them. The pattern is gather with a data tool → render it with a visualization tool. After calling, the model tells you the card is shown below; it must not paste a code block itself - the card appears automatically.

Charts¶

ECharts-backed cards. All eight render from JSON data you provide and expose PNG + Copy export buttons.

renderChart 🆓

productivity · visualization L0

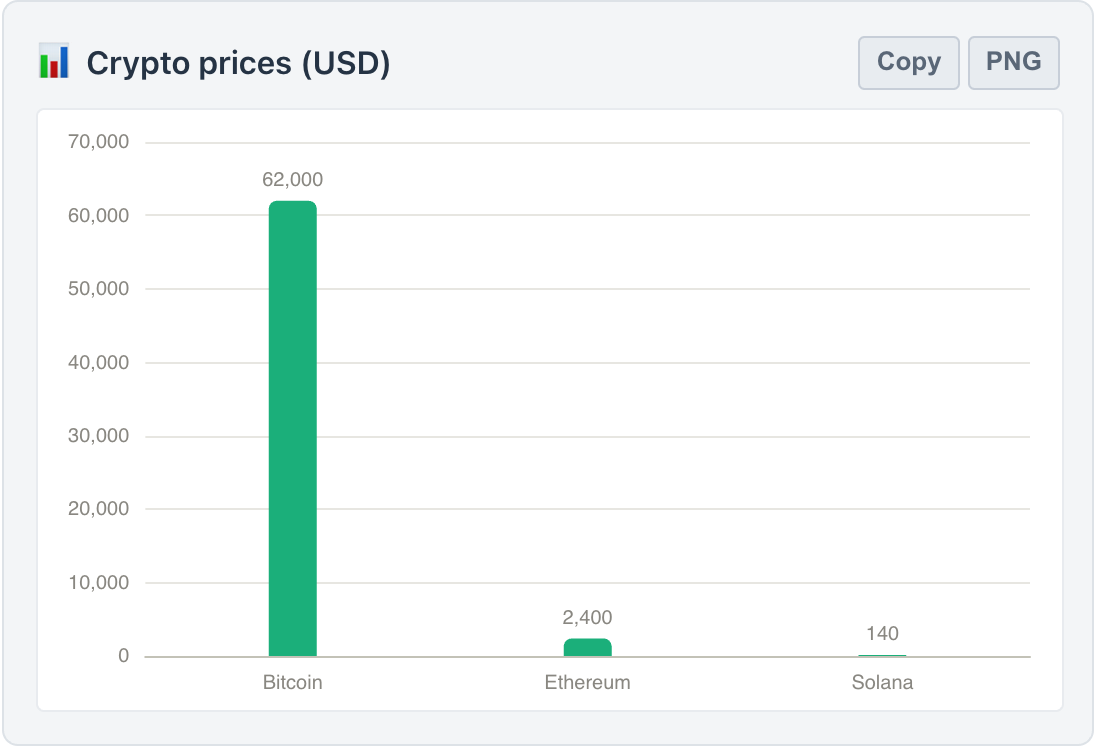

Renders a chart directly in the chat from data you provide: bar, line, area, pie, radar, scatter, or gauge. Use this to visualize numbers you have gathered.

Params chartType · labels · series · title · max · seriesName · sort

Env -

Click for full reference · params · card behavior

More detail

Renders a chart directly in the chat from data you provide: bar, line, area, pie, radar, scatter, or gauge. labels is a JSON array of category names (x-axis categories, pie slice names, or radar axes). series is EITHER a JSON array of numbers (single series) OR a JSON array of {"name":..., "data":[...]} objects (multiple series). Per type: bar/line/area use labels + numeric series; pie uses labels + one numeric series; radar uses labels as axes + one or more {name,data} series; scatter uses series of [x,y] number pairs (labels optional); gauge shows ONE number (pass series as [value], optional max). sort reorders a single-series bar or pie chart by value - use asc for categories with no inherent order (countries, products) and omit it for time or ordinal categories (years, months, stages). The card has PNG + Copy export buttons.

Parameters

Param	Type	Req	Description
`chartType`	`STRING`	✓	One of bar, line, area, pie, radar, scatter, gauge.
`labels`	`STRING`		JSON array of category names (x-axis, pie slices, or radar axes).
`series`	`STRING`	✓	JSON array of numbers, or of `{name, data}` objects.
`title`	`STRING`		Optional chart title.
`max`	`STRING`		Gauge maximum (gauge type only).
`seriesName`	`STRING`		Optional name for a single series (legend/tooltip label).
`sort`	`STRING`		Category order for a single-series bar or pie chart: `asc` or `desc`. Omit for time or ordinal categories.

Sandbox - Runs at the sandbox L0 baseline (Safest) - pure compute: no network, no filesystem.

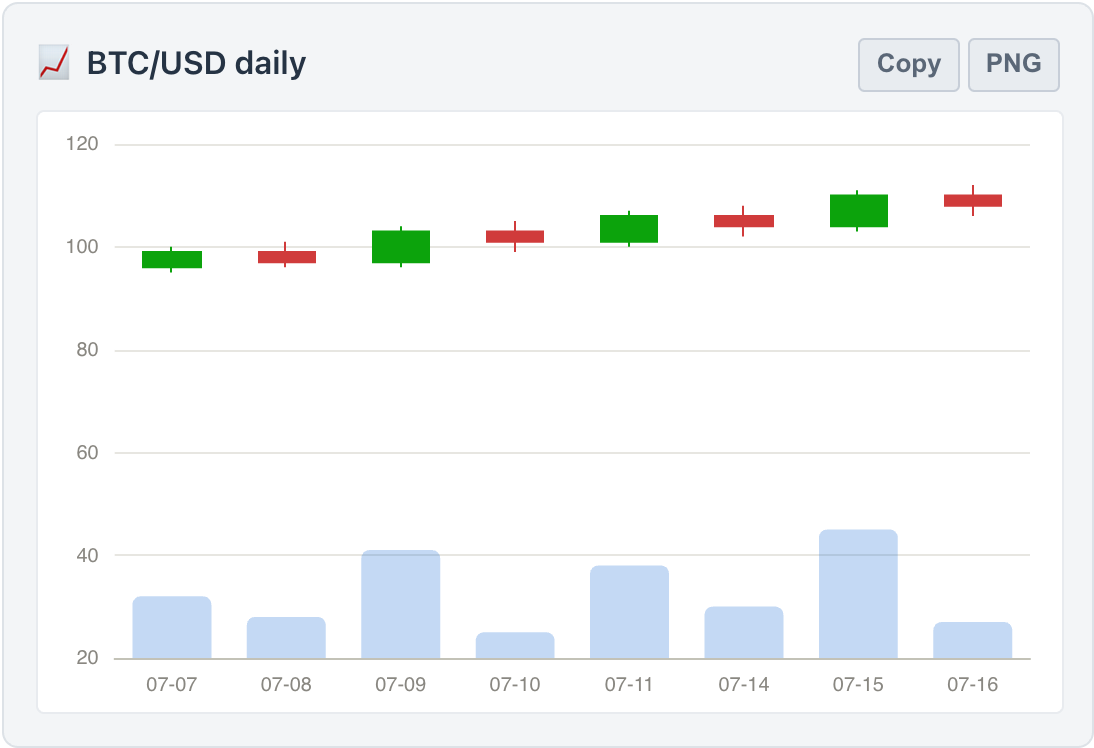

renderCandlestick 🆓

productivity · visualization L0

Renders an OHLC candlestick chart in the chat from open/high/low/close data, optionally overlaying trading volume. Pairs with crypto or stock candle tools.

Params data · title · volume

Env -

Click for full reference · params · card behavior

More detail

Renders an OHLC candlestick chart in the chat. data is a JSON array of {t (label or date), o, h, l, c, v?} objects (open/high/low/close, optional volume). Set volume to true to overlay trading volume. Pairs with crypto or stock candle tools. The card has PNG + Copy export buttons.

Parameters

Param	Type	Req	Description
`data`	`STRING`	✓	JSON array of `{t, o, h, l, c, v?}` candles (`t` may also be `date` or `time`).
`title`	`STRING`		Optional chart title.
`volume`	`STRING`		`'true'` to overlay trading volume.

Sandbox - Runs at the sandbox L0 baseline (Safest) - pure compute: no network, no filesystem.

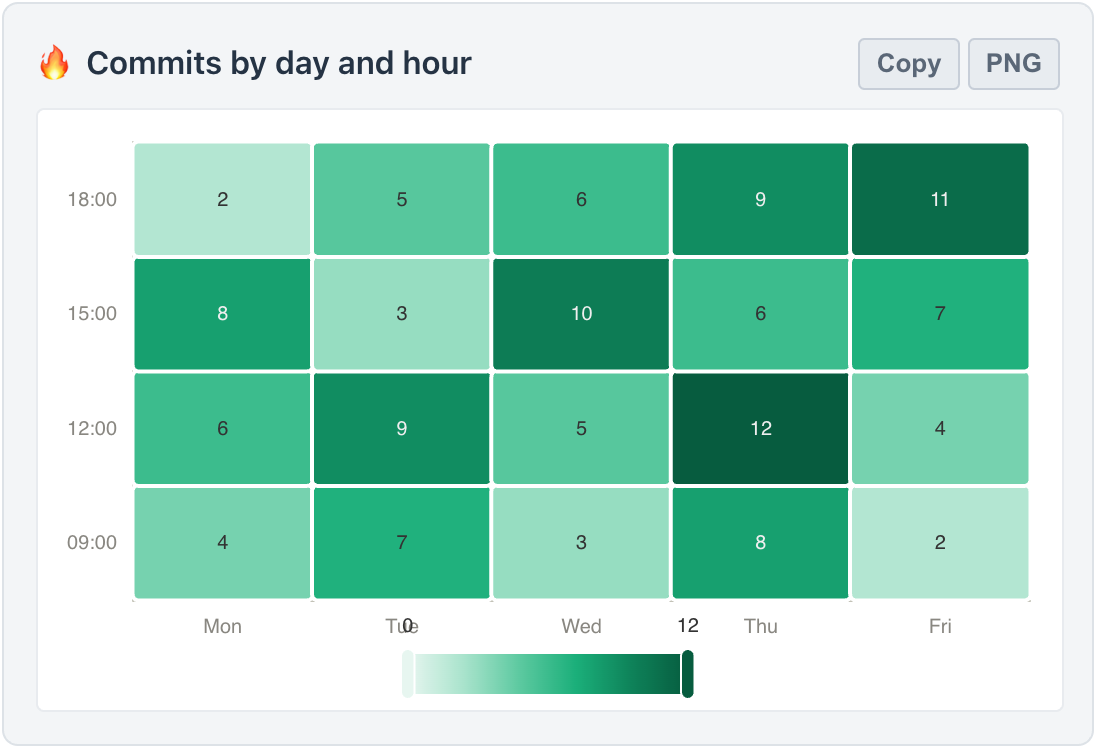

renderHeatmap 🆓

productivity · visualization L0

Renders a 2D heatmap in the chat from x/y category labels and [xIndex, yIndex, value] triples. Good for activity-by-day-and-hour, correlation, or any matrix of numbers.

Params xLabels · yLabels · data · title

Env -

Click for full reference · params · card behavior

More detail

Renders a 2D heatmap in the chat. xLabels and yLabels are JSON arrays of category names. data is a JSON array of [xIndex, yIndex, value] triples. Good for activity-by-day-and-hour, correlation, or any matrix of numbers. The card has PNG + Copy export buttons.

Parameters

Param	Type	Req	Description
`xLabels`	`STRING`	✓	JSON array of x-axis category names.
`yLabels`	`STRING`	✓	JSON array of y-axis category names.
`data`	`STRING`	✓	JSON array of `[xIndex, yIndex, value]` triples (objects `{x, y, value}` also accepted).
`title`	`STRING`		Optional chart title.

Sandbox - Runs at the sandbox L0 baseline (Safest) - pure compute: no network, no filesystem.

renderSankey 🆓

productivity · visualization L0

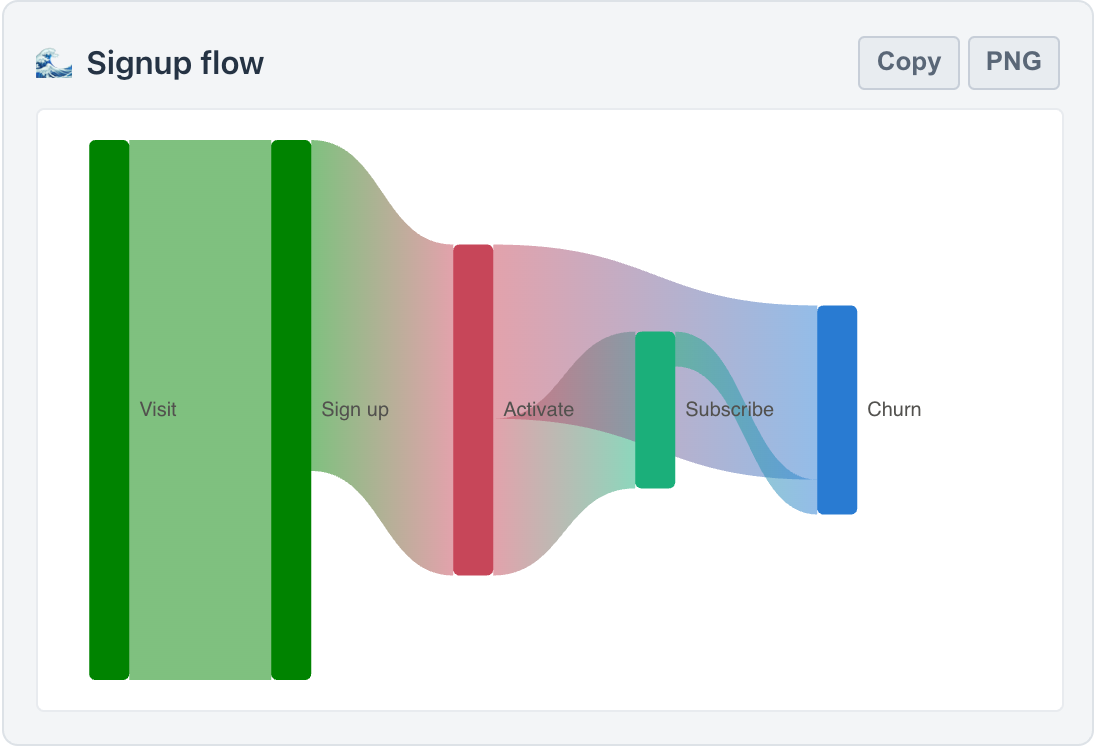

Renders a Sankey flow diagram in the chat from a list of nodes and weighted {source, target, value} links between them.

Params nodes · links · title

Env -

Click for full reference · params · card behavior

More detail

Renders a Sankey flow diagram in the chat. nodes is a JSON array of node names (or {name} objects). links is a JSON array of {source, target, value} where source/target are node names. The card has PNG + Copy export buttons.

Parameters

Param	Type	Req	Description
`nodes`	`STRING`	✓	JSON array of node names or `{name}` objects.
`links`	`STRING`	✓	JSON array of `{source, target, value}`.
`title`	`STRING`		Optional chart title.

Sandbox - Runs at the sandbox L0 baseline (Safest) - pure compute: no network, no filesystem.

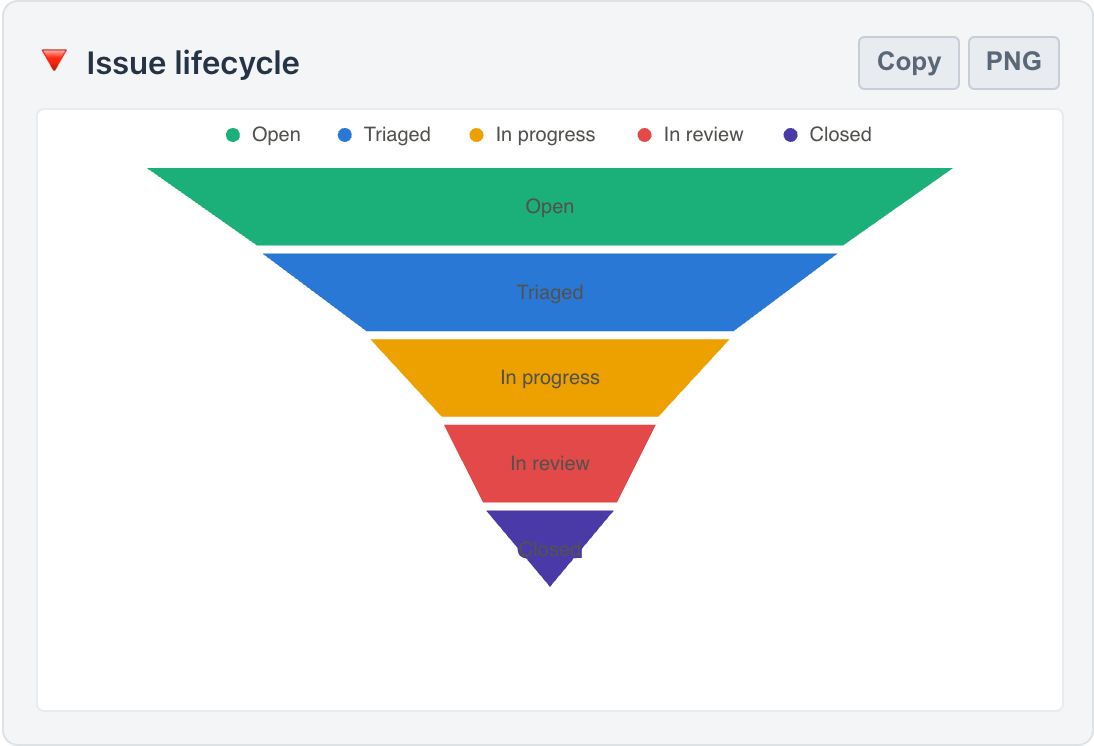

renderFunnel 🆓

productivity · visualization L0

Renders a funnel chart for staged, descending values in the chat from a list of {name, value} stages, usually ordered largest to smallest.

Params data · title

Env -

Click for full reference · params · card behavior

More detail

Renders a funnel chart for staged, descending values in the chat. data is a JSON array of {name, value} objects, usually ordered from largest to smallest stage. The card has PNG + Copy export buttons.

Parameters

Param	Type	Req	Description
`data`	`STRING`	✓	JSON array of `{name, value}` stages.
`title`	`STRING`		Optional chart title.

Sandbox - Runs at the sandbox L0 baseline (Safest) - pure compute: no network, no filesystem.

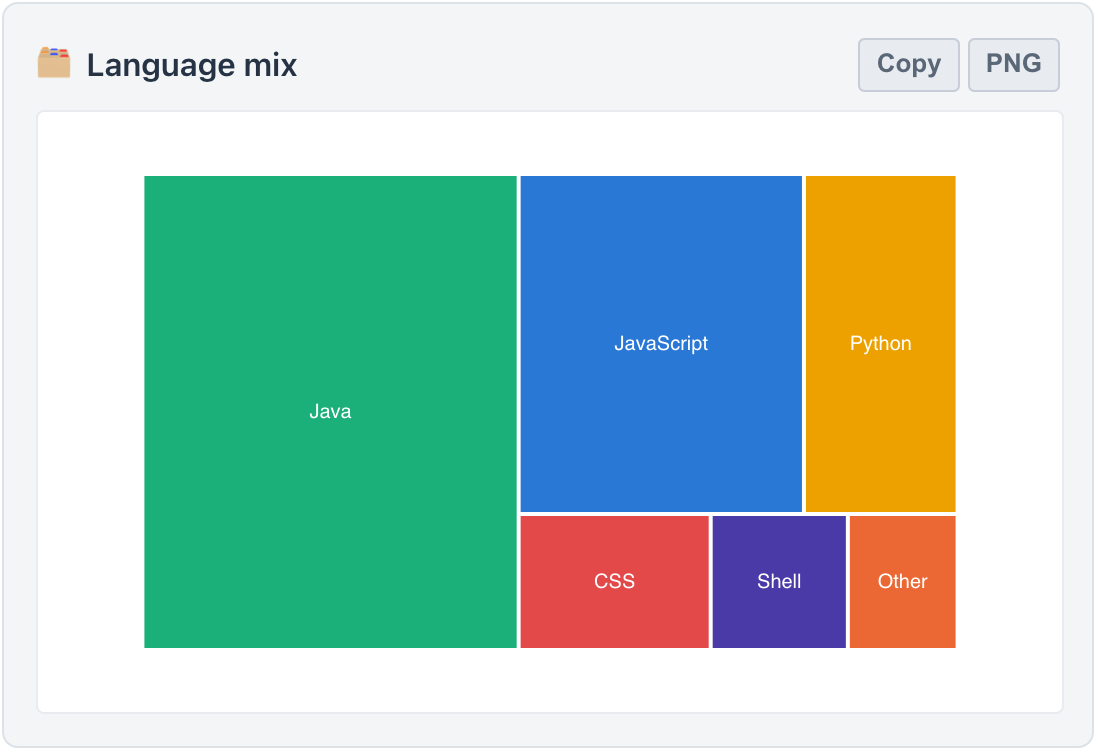

renderTreemap 🆓

productivity · visualization L0

Renders a treemap of hierarchical part-of-whole data in the chat from {name, value, children?} nodes; nested children are allowed for hierarchy.

Params data · title

Env -

Click for full reference · params · card behavior

More detail

Renders a treemap of hierarchical part-of-whole data in the chat. data is a JSON array of {name, value, children?:[...]} nodes; nested children are allowed for hierarchy. The card has PNG + Copy export buttons.

Parameters

Param	Type	Req	Description
`data`	`STRING`	✓	JSON array of `{name, value, children?}` nodes.
`title`	`STRING`		Optional chart title.

Sandbox - Runs at the sandbox L0 baseline (Safest) - pure compute: no network, no filesystem.

renderGraph 🆓

productivity · visualization L0

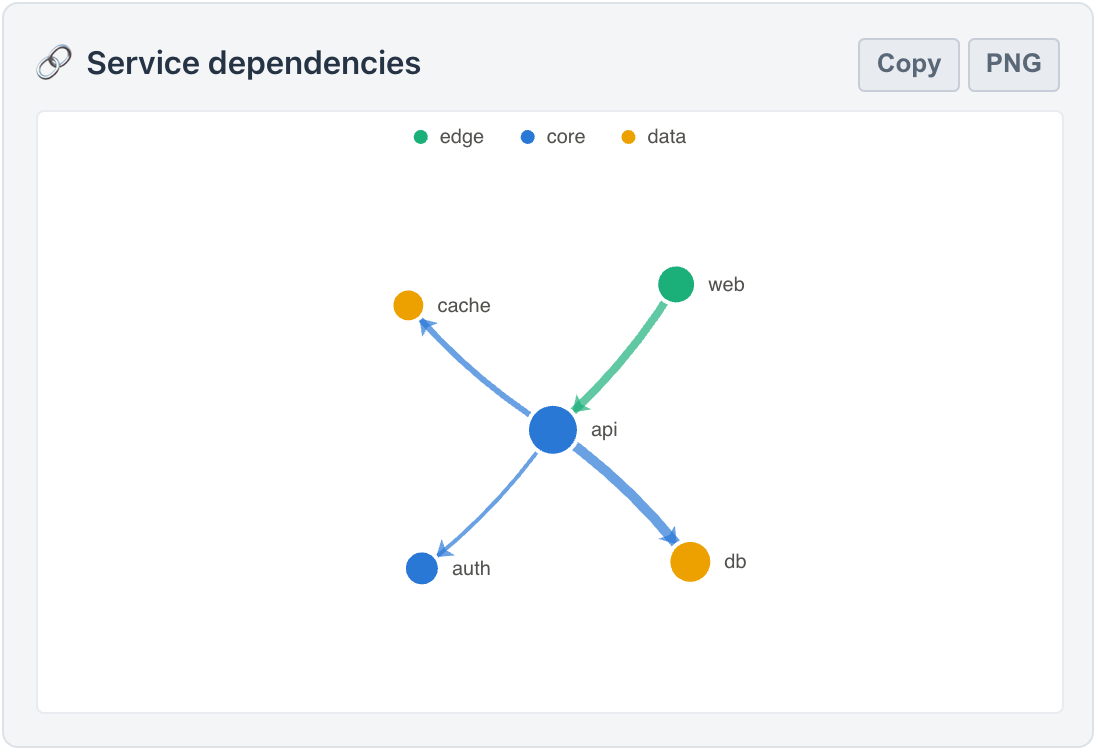

Renders a force-directed relationship graph in the chat from nodes and links. Good for dependencies, knowledge maps, or social graphs.

Params nodes · links · directed · title

Env -

Click for full reference · params · card behavior

More detail

Renders a network/relationship graph using a force-directed layout. nodes is a JSON array of node names (or {name, value?, category?} objects; value scales node size, category groups and colors nodes with a legend). links is a JSON array of {source, target, value?} where source/target are node names and value scales the edge width. Set directed to true for arrowed edges. The card has PNG + Copy export buttons.

Parameters

Param	Type	Req	Description
`nodes`	`STRING`	✓	JSON array of node names or `{name, value?, category?, symbolSize?}` objects (symbolSize sets an explicit node diameter).
`links`	`STRING`	✓	JSON array of `{source, target, value?}` edges.
`directed`	`STRING`		`'true'` for directed (arrowed) edges.
`title`	`STRING`		Optional chart title.

Sandbox - Runs at the sandbox L0 baseline (Safest) - pure compute: no network, no filesystem.

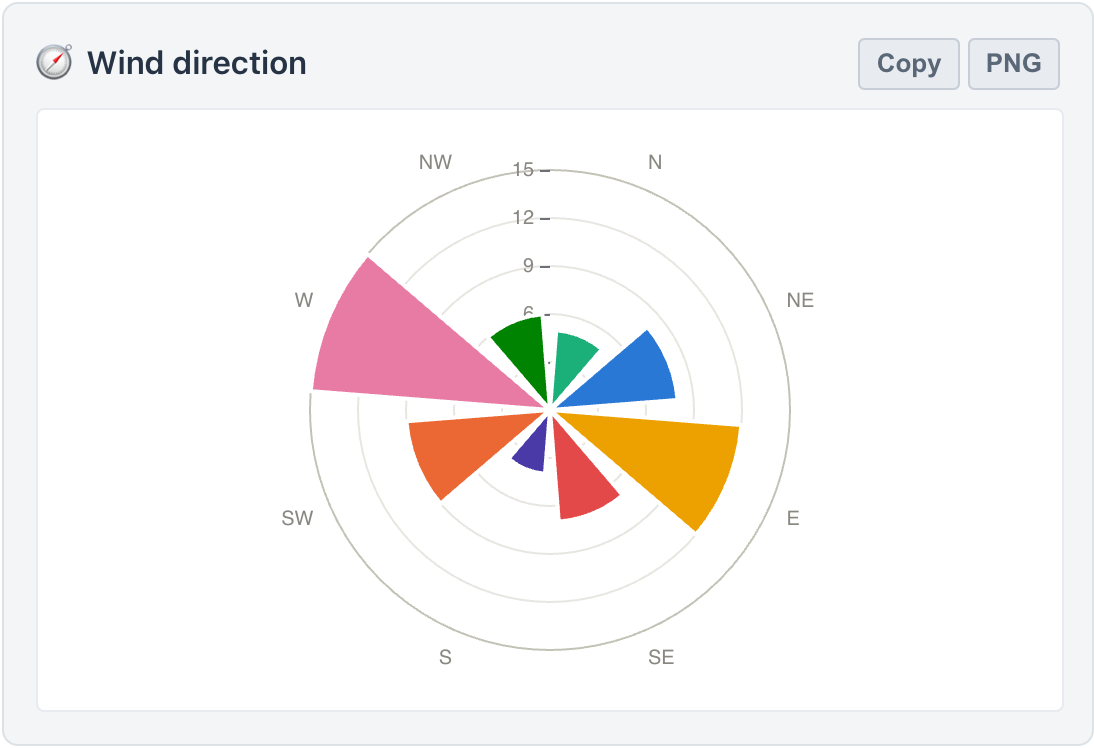

renderWindRose 🆓

productivity · visualization L0

Renders a rose (polar bar) chart in the chat, showing magnitude by category around a circle. Good for wind direction, time-of-day distributions, or ranked category comparisons.

Params directions · series · title · seriesName · sort

Env -

Click for full reference · params · card behavior

More detail

Renders a rose (polar bar) chart, plotting magnitude by category around a circle. directions is a JSON array of the labels arranged around the circle - compass points (N, NE, E, ...), hours, months, or any plain category names. series is EITHER a JSON array of numbers (single series) OR a JSON array of {name, data} objects (stacked bands). A single series is drawn nightingale style: each slice gets its own palette color, and slices are sorted ascending by value so they grow around the circle. When every label carries an order of its own - compass points, anything containing a digit, month or weekday names - the order you passed is kept instead. sort overrides that choice (asc, desc, or none). Several {name, data} series stack into bands, one color per band, with a legend. Good for wind direction, time-of-day distributions, or ranked category comparisons. The card has PNG + Copy export buttons.

Parameters

Param	Type	Req	Description
`directions`	`STRING`	✓	JSON array of direction or category labels.
`series`	`STRING`	✓	JSON array of numbers, or of `{name, data}` objects for stacked bands.
`seriesName`	`STRING`		Optional name for a single series (legend/tooltip label).
`title`	`STRING`		Optional chart title.
`sort`	`STRING`		Slice order: `asc` (the default for a single series with plain category labels), `desc`, or `none` to keep the given order.

Sandbox - Runs at the sandbox L0 baseline (Safest) - pure compute: no network, no filesystem.

Maps¶

Leaflet- and ECharts-backed map cards. Display-only, no account or key; the marker and density maps carry a light/dark basemap toggle, and all three expose PNG + Copy export buttons.

plotPointsOnMap 🆓

productivity · visualization L0

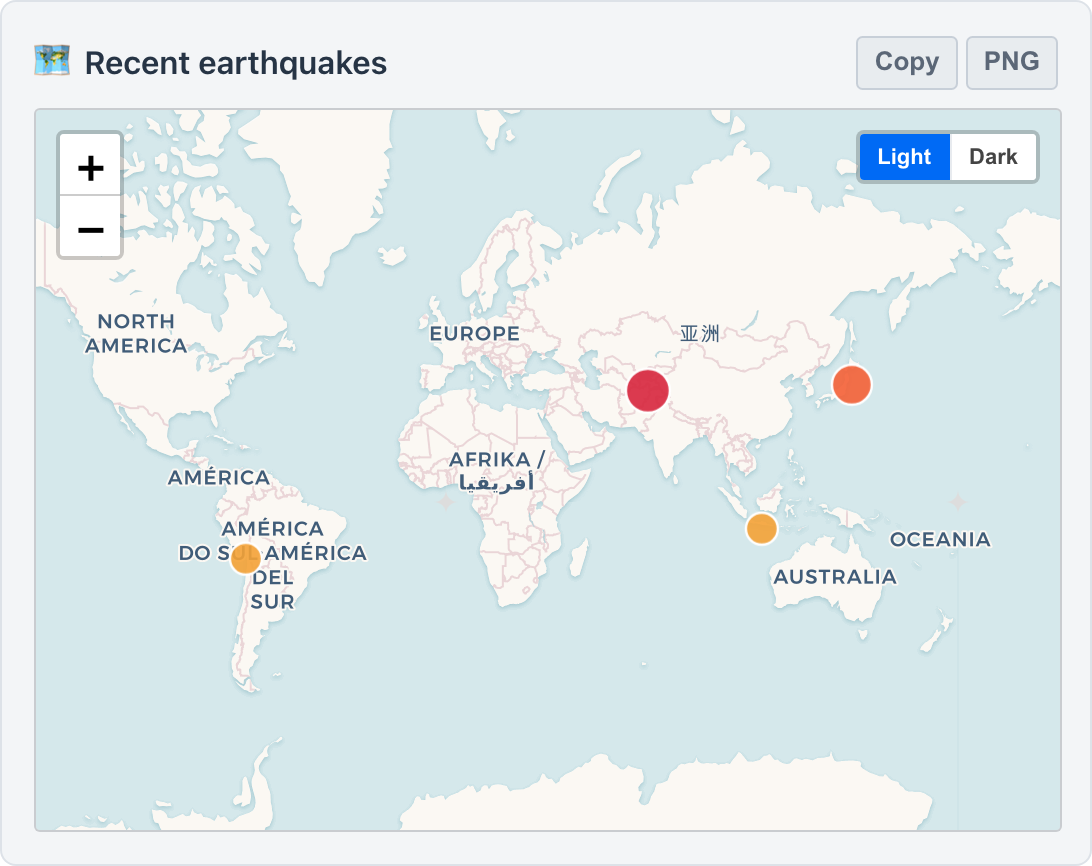

Renders an interactive world map with MULTIPLE markers directly in the chat. Use this to plot several geographic points at once (e.g. earthquakes, cities, store locations).

Params points · title · style

Env -

Click for full reference · params · card behavior

More detail

Renders an interactive world map with MULTIPLE markers directly in the chat. Pass points as a JSON array; each item needs numeric lat and lng, plus an optional label and an optional numeric weight (or mag) that sizes and colors the marker. Display-only, no account or key. Optional style picks the basemap (light or dark); the default is light and the user can also toggle it on the map. For a single place, use showLocation from Examples instead.

Parameters

Param	Type	Req	Description
`points`	`STRING`	✓	JSON array of `{lat, lng, label?, weight?}` points.
`title`	`STRING`		Optional caption shown above the map.
`style`	`STRING`		Basemap: `light` (default) or `dark`.

Sandbox - Runs at the sandbox L0 baseline (Safest) - pure compute: no network, no filesystem.

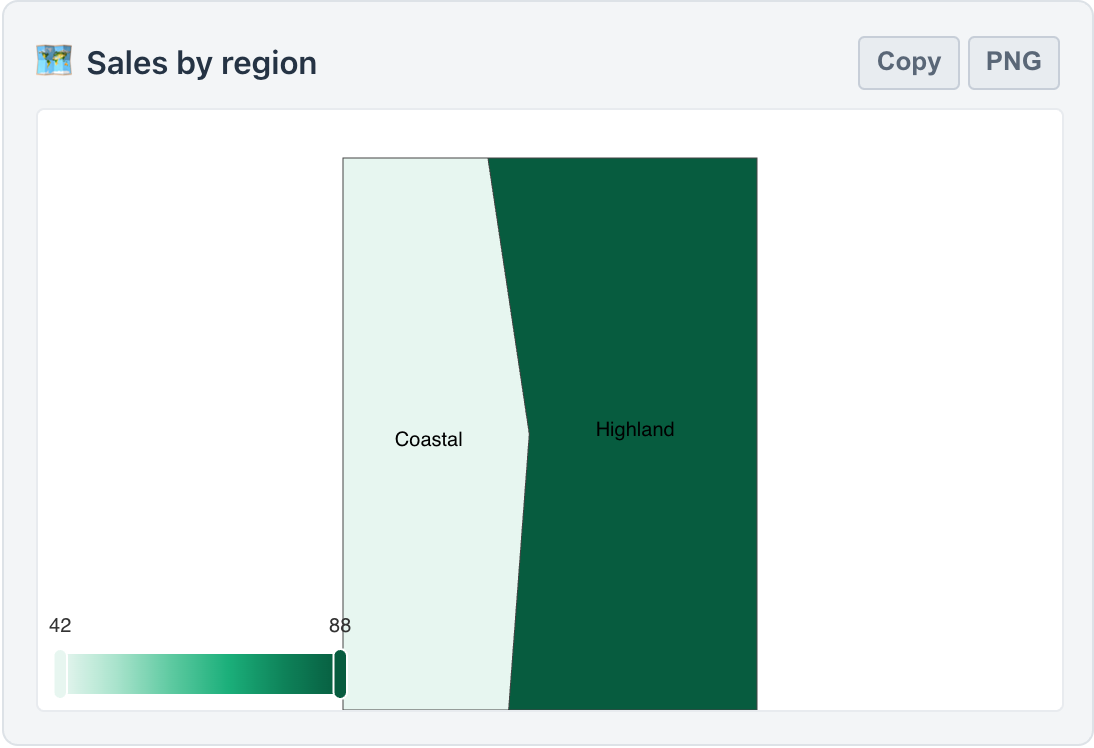

renderChoropleth 🆓

productivity · visualization L0

Renders a region-shaded choropleth map from a GeoJSON you supply and per-region values. Good for any statistic broken out by region.

Params geoJson · values · nameProperty · title

Env -

Click for full reference · params · card behavior

More detail

Renders a choropleth (region-shaded) map from a caller-supplied GeoJSON. geoJson is a GeoJSON FeatureCollection whose features each carry a name property. values is a JSON array of {name, value} keyed by that feature name; regions are shaded from light to dark by value, with a legend. Use nameProperty if the feature name lives under a key other than name. The card has PNG + Copy export buttons.

Parameters

Param	Type	Req	Description
`geoJson`	`STRING`	✓	GeoJSON FeatureCollection with named features.
`values`	`STRING`	✓	JSON array of `{name, value}` keyed by feature name.
`nameProperty`	`STRING`		Feature property holding the region name (default `name`).
`title`	`STRING`		Optional card title.

Sandbox - Runs at the sandbox L0 baseline (Safest) - pure compute: no network, no filesystem.

renderGeoHeat 🆓

productivity · visualization L0

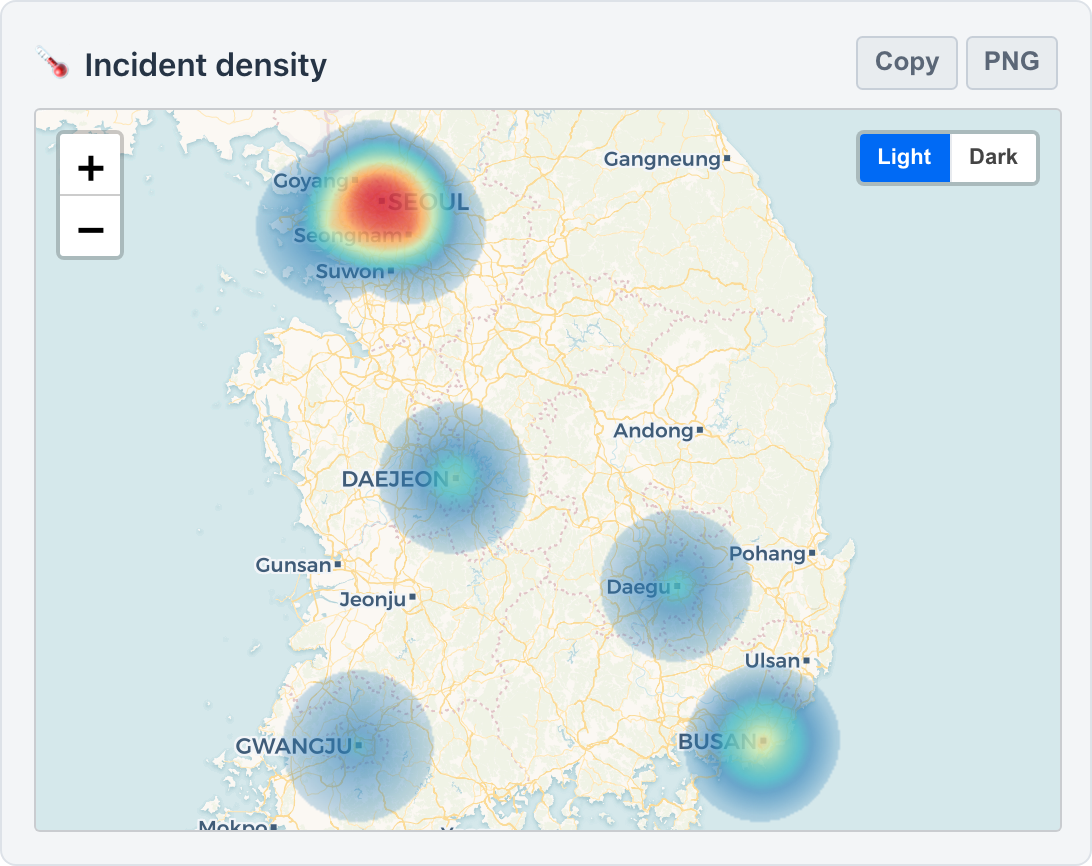

Renders a geographic density heatmap over a real basemap (Light/Dark toggle). Good for incident density, sightings, or any lat/lng hotspot map.

Params points · radius · title · style

Env -

Click for full reference · params · card behavior

More detail

Renders a geographic density heatmap over a real basemap, where denser or higher-intensity areas glow warmer. points is a JSON array of {lat, lng, intensity?} objects. Optional radius (pixels) controls the blur spread. The map has a Light/Dark basemap toggle. For discrete markers instead of a density field, use plotPointsOnMap. The card has PNG + Copy export buttons.

Parameters

Param	Type	Req	Description
`points`	`STRING`	✓	JSON array of `{lat, lng, intensity?}` objects.
`radius`	`STRING`		Blur radius in pixels (default 28).
`style`	`STRING`		Basemap: `light` (default) or `dark`.
`title`	`STRING`		Optional card title.

Sandbox - Runs at the sandbox L0 baseline (Safest) - pure compute: no network, no filesystem.

Documents & data¶

Text- and table-oriented cards: tables, KPI tiles, comparisons, timelines, and side-by-side diffs.

renderTable 🆓

productivity · visualization L0

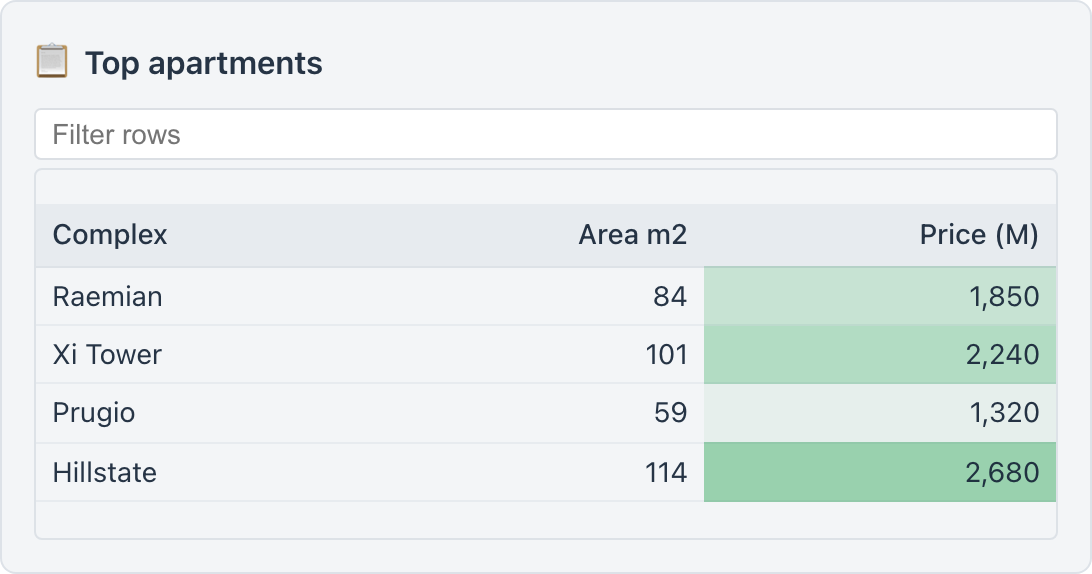

Renders a sortable, searchable data table in the chat. Good for any list of records (prices, issues, search results).

Params columns · rows · title · sortable · searchable

Env -

Click for full reference · params · card behavior

More detail

Renders a sortable, searchable data table in the chat. Pass columns as a JSON array of {key, label, align?('right'), format?('number'), heat?(true to shade the cell by value)} and rows as a JSON array of objects keyed by each column key. Optional sortable and searchable ('true'/'false'). Good for any list of records (prices, issues, search results).

Parameters

Param	Type	Req	Description
`columns`	`STRING`	✓	JSON array of `{key, label, align?, format?, heat?}`.
`rows`	`STRING`	✓	JSON array of objects keyed by each column key.
`title`	`STRING`		Optional table title.
`sortable`	`STRING`		`'true'`/`'false'`.
`searchable`	`STRING`		`'true'`/`'false'`.

Sandbox - Runs at the sandbox L0 baseline (Safest) - pure compute: no network, no filesystem.

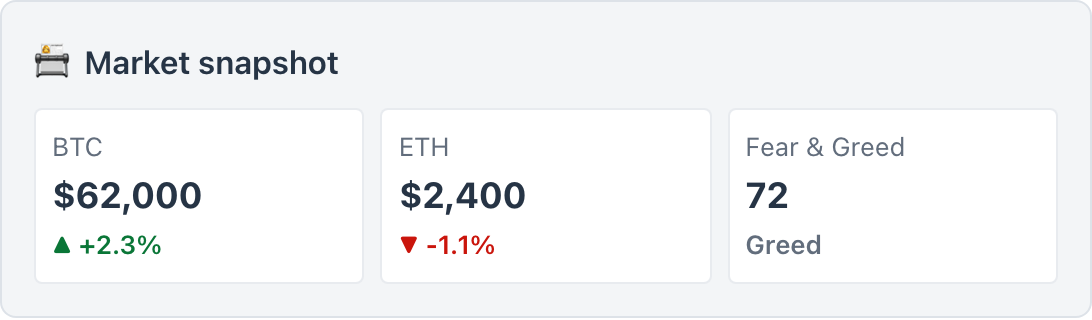

renderStatCards 🆓

productivity · visualization L0

Renders a row of KPI / metric tiles in the chat. Use for headline numbers like prices, counts, or weather readings.

Params cards · title

Env -

Click for full reference · params · card behavior

More detail

Renders a row of KPI / metric tiles in the chat. Pass cards as a JSON array of {label, value, delta?, trend?('up'|'down'|'flat')}. Use for headline numbers like prices, counts, or weather readings.

Parameters

Param	Type	Req	Description
`cards`	`STRING`	✓	JSON array of `{label, value, delta?, trend?}`.
`title`	`STRING`		Optional row title.

Sandbox - Runs at the sandbox L0 baseline (Safest) - pure compute: no network, no filesystem.

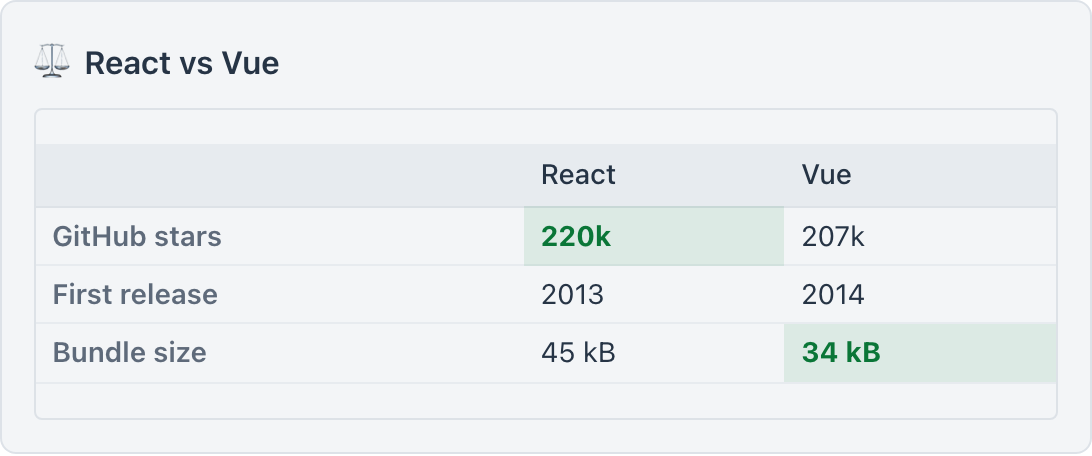

renderComparison 🆓

productivity · visualization L0

Renders a side-by-side comparison table for two or more entities, optionally highlighting the winning value per row.

Params entities · rows · title

Env -

Click for full reference · params · card behavior

More detail

Renders a side-by-side comparison table for two or more entities. entities is a JSON array of names (the columns). rows is a JSON array of {label, values:[...], best?(0-based index of the winning value, optional)}.

Parameters

Param	Type	Req	Description
`entities`	`STRING`	✓	JSON array of entity names (the columns).
`rows`	`STRING`	✓	JSON array of `{label, values, best?}`.
`title`	`STRING`		Optional table title.

Sandbox - Runs at the sandbox L0 baseline (Safest) - pure compute: no network, no filesystem.

renderTimeline 🆓

productivity · visualization L0

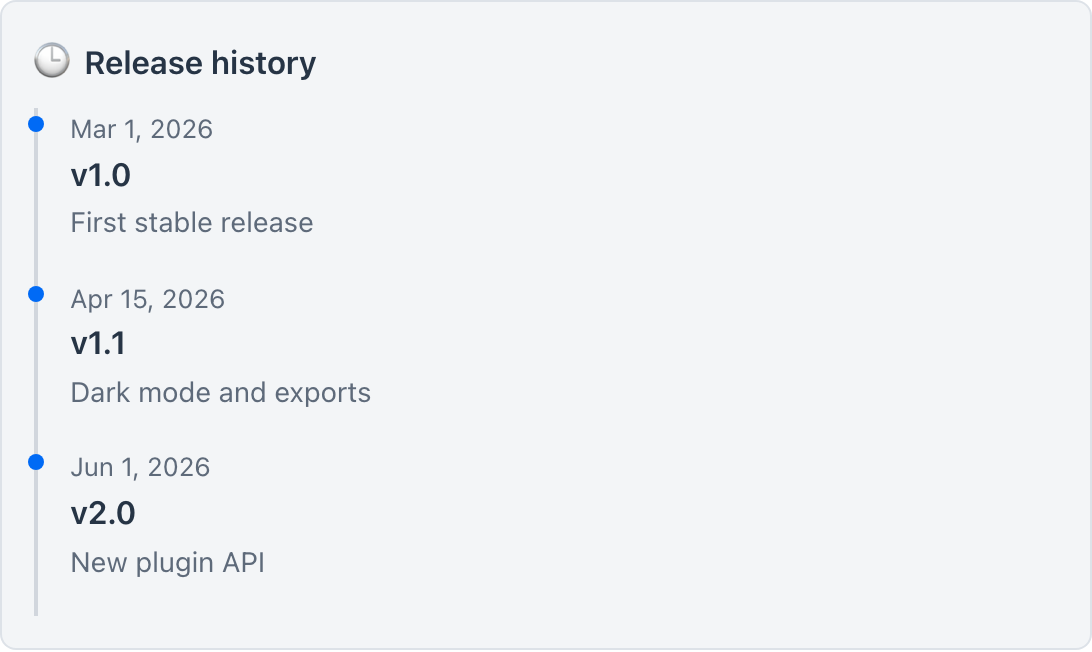

Renders a vertical event timeline in the chat. Use for histories, schedules, or sequences of dated events.

Params events · title

Env -

Click for full reference · params · card behavior

More detail

Renders a vertical event timeline in the chat. events is a JSON array of {date, title, detail?}. Use for histories, schedules, or sequences of dated events.

Parameters

Param	Type	Req	Description
`events`	`STRING`	✓	JSON array of `{date, title, detail?}`.
`title`	`STRING`		Optional timeline title.

Sandbox - Runs at the sandbox L0 baseline (Safest) - pure compute: no network, no filesystem.

renderDiff 🆓

productivity · visualization L0

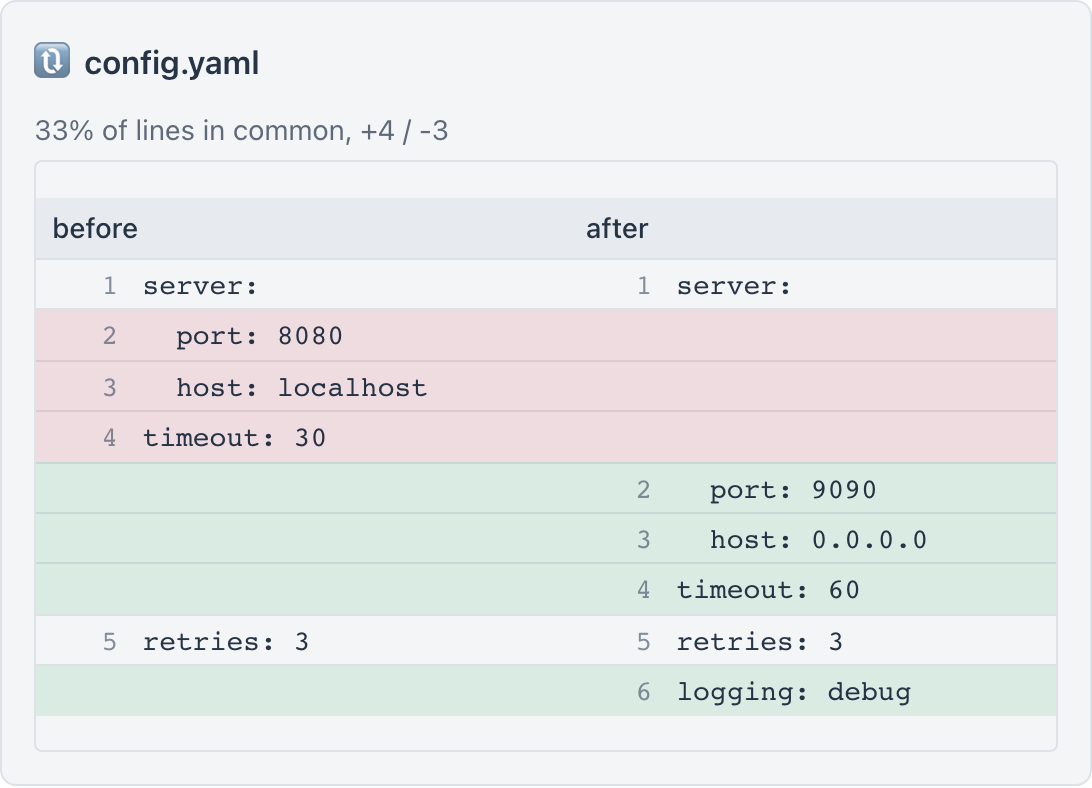

Compares two texts (or two files you have read) line by line and shows a side-by-side diff card: lines only on the left are red, lines only on the right are green.

Params left · right · leftLabel · rightLabel · title

Env -

Click for full reference · params · card behavior

More detail

Compares two texts (or two files you have read) line by line and shows a side-by-side diff card: lines only on the left are red, lines only on the right are green. If the two are almost entirely different it shows a 'completely different' banner. Pass the two texts as left and right with optional leftLabel/rightLabel (e.g. file names). To compare files, read them first with readTextFile and pass the contents.

Parameters

Param	Type	Req	Description
`left`	`STRING`	✓	Left-hand text.
`right`	`STRING`	✓	Right-hand text.
`leftLabel`	`STRING`		Optional label for the left side (e.g. a file name).
`rightLabel`	`STRING`		Optional label for the right side.
`title`	`STRING`		Optional card title.

Sandbox - Runs at the sandbox L0 baseline (Safest) - pure compute: no network, no filesystem.

Media & diagrams¶

Mermaid diagrams and embedded images.

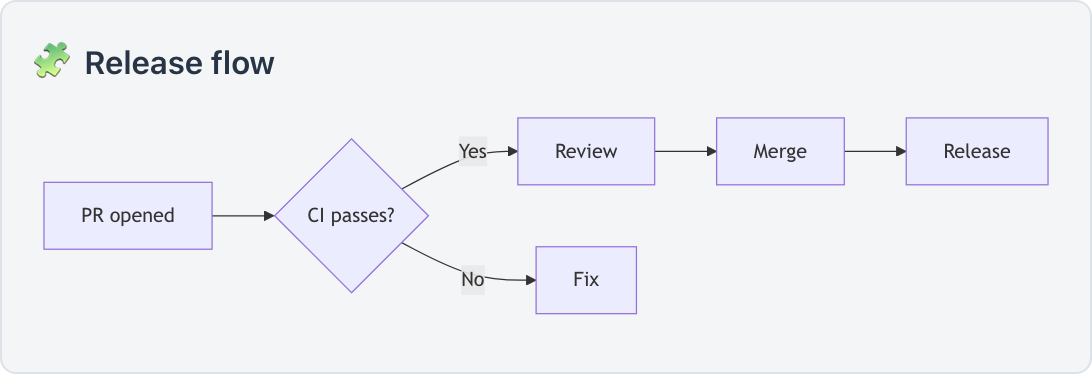

renderDiagram 🆓

productivity · visualization L0

Renders a Mermaid diagram directly in the chat (flowchart, sequence, gantt, mindmap, pie, ER, state, timeline, and more).

Params code · title

Env -

Click for full reference · params · card behavior

More detail

Renders a Mermaid diagram directly in the chat (flowchart, sequence, gantt, mindmap, pie, ER, state, timeline, and more). Use this to show a process, architecture, timeline, relationship, or org chart as a real diagram instead of plain text. Pass the Mermaid source as code, starting with the diagram type, e.g. flowchart LR, sequenceDiagram, gantt, mindmap, erDiagram, stateDiagram-v2, or timeline.

Parameters

Param	Type	Req	Description
`code`	`STRING`	✓	Mermaid source, starting with the diagram type.
`title`	`STRING`		Optional diagram title.

Sandbox - Runs at the sandbox L0 baseline (Safest) - pure compute: no network, no filesystem.

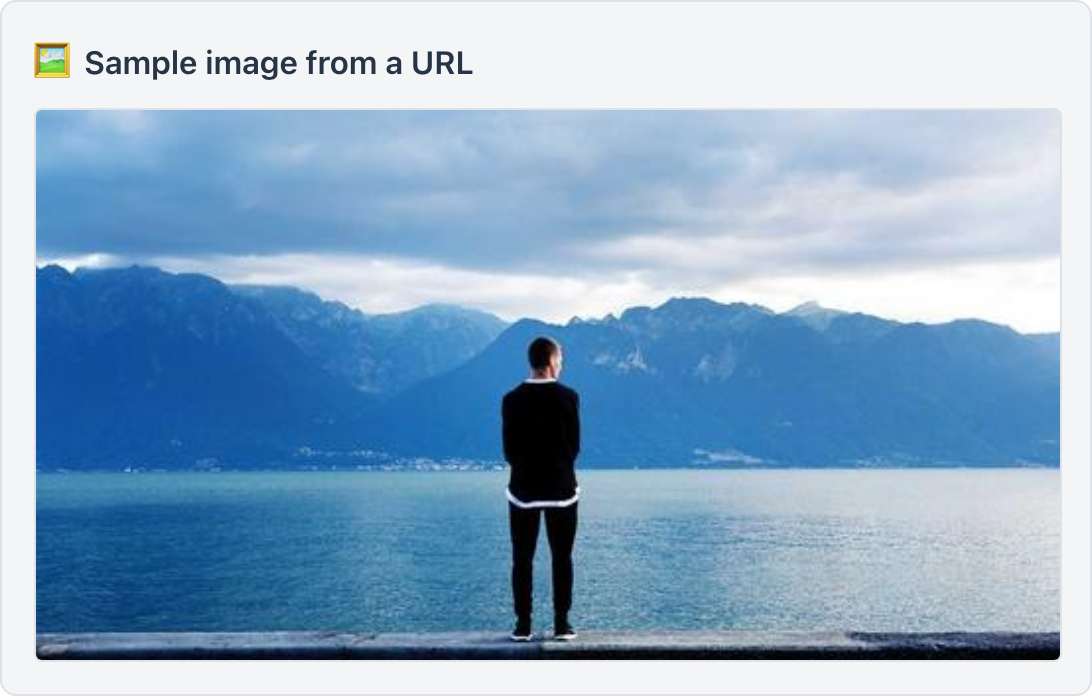

showImage 🆓

productivity · visualization L0

Displays an image from a public URL directly in the chat (a photo, a chart image, a diagram, or a QR code you have a link to).

Params url · caption · alt

Env -

Click for full reference · params · card behavior

More detail

Displays an image from a public URL directly in the chat (a photo, a chart image, a diagram, or a QR code you have a link to). Provide a direct https image url and an optional caption. Use only direct image URLs (typically ending in .png/.jpg/.jpeg/.gif/.webp/.svg).

Parameters

Param	Type	Req	Description
`url`	`STRING`	✓	Direct https image URL.
`caption`	`STRING`		Optional caption shown below the image.
`alt`	`STRING`		Optional alt text.

Sandbox - Runs at the sandbox L0 baseline (Safest) - pure compute: no network, no filesystem.

How the card renders¶

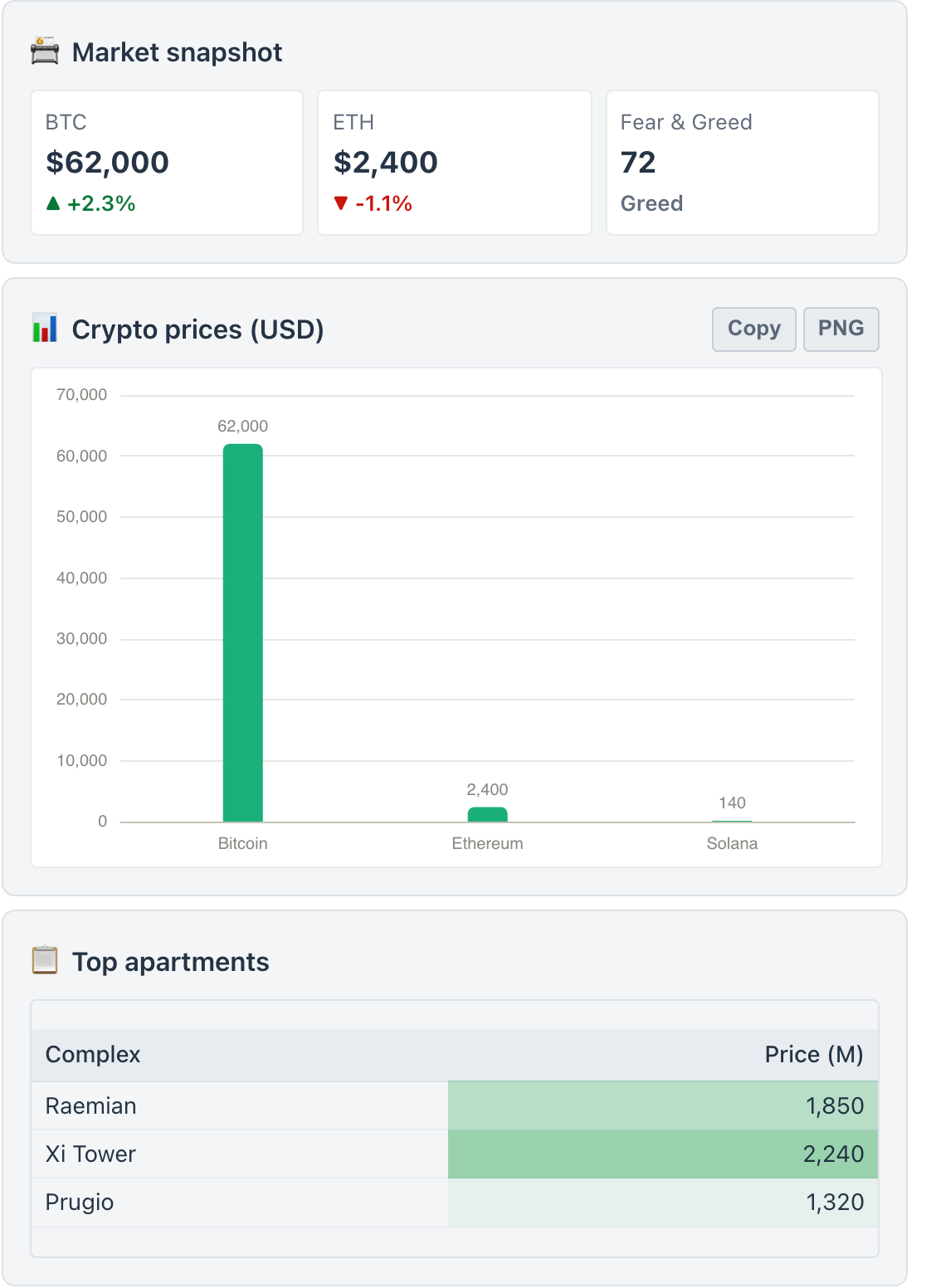

Each tool returns a fenced ```saip-action block describing the card. The chat front end parses it and mounts the matching renderer - ECharts for the chart family and the choropleth map, Leaflet for the marker and density maps, Mermaid for diagrams, and lightweight DOM for tables, stat cards, comparisons, timelines, and diffs. Because the rendering is client-side and the tools declare no network or filesystem capability, every card runs at the sandbox L0 baseline.

The chart and map cards expose PNG (download the rendered card as an image) and Copy (copy the image to the clipboard) buttons, so a generated visual can be dropped straight into another document, slide, or message - including an email drafted with sendEmail from Examples.

Was this page helpful? Ask on Discussions · Report a docs issue
