Offline: Indexing

Where: Vector Database → the New Document & ETL Pipeline button in the header.

Nothing can be retrieved that was not indexed well. This is the offline half of RAG: source file in, embedded chunks out. Spring AI models it as a three-stage ETL pipeline, and the dialog is laid out in those same three stages.

Spring AI ETL pipeline - the extract, transform, and load stages that move raw documents into a vector store

Stage Spring AI interface What it produces In the dialog
Extract DocumentReader raw Document objects Extract section
Transform DocumentTransformer split and enriched chunks Token Text Splitter Settings + Metadata Enrichment
Load DocumentWriter vectors in the store Embed and insert

Extract

Upload a single PDF, DOC/DOCX, PPT/PPTX, MD, HTML, JSON, or TXT file up to 20 MB. The reader is chosen for you from the file extension and can be overridden, because the best reader is not always the obvious one: a .pdf of scanned slides may extract better through Tika than through either PDF reader.

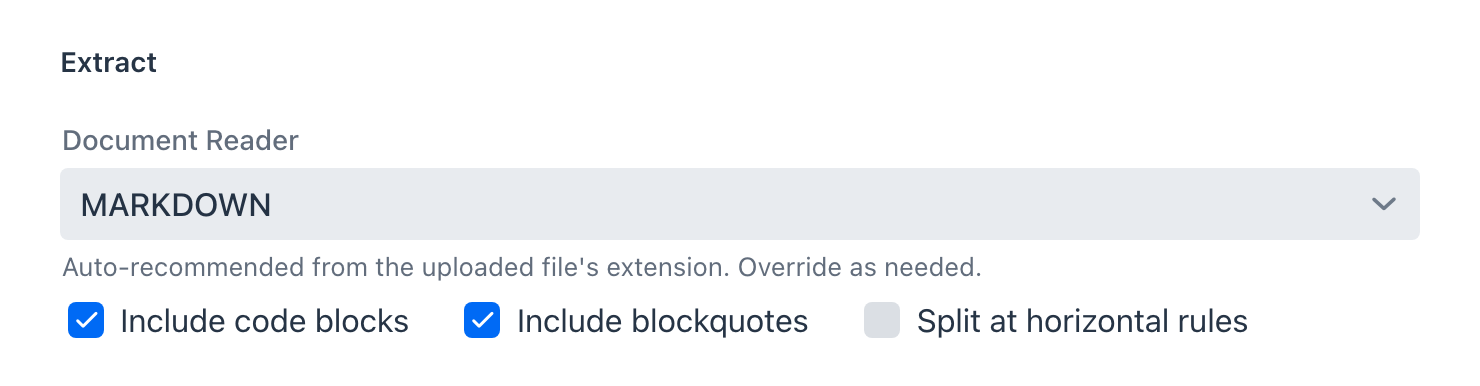

The Extract section of the New Document dialog - the Document Reader combo showing MARKDOWN, auto-recommended from the uploaded file, with the markdown-specific options for code blocks, blockquotes, and horizontal rules below it

Each option is a Spring AI reader:

Reader Spring AI class Auto-picked for Options exposed
TIKA TikaDocumentReader anything unmatched (DOC, DOCX, PPT, PPTX, ...) none
TEXT TextReader .txt, .text character set
JSON JsonReader .json keys to extract, blank for whole objects
MARKDOWN MarkdownDocumentReader .md, .markdown include code blocks, include blockquotes, split at horizontal rules
HTML JsoupDocumentReader .html, .htm CSS selector, default body
PDF_PAGE PagePdfDocumentReader .pdf pages per document
PDF_PARAGRAPH ParagraphPdfDocumentReader (manual) none

The two PDF readers differ in where they cut. PDF_PAGE produces one document per page or per N pages, which suits reports with page-aligned content. PDF_PARAGRAPH follows the PDF's own paragraph structure, which suits prose that runs across page breaks. Structure-aware readers such as MARKDOWN split on the document's own headings, so chunks arrive already aligned to sections before the splitter ever runs.

Name and Description identify the document later. The description is worth filling in: it is the hint shown when picking documents for a RAG pipeline.

Transform

Transform runs the TokenTextSplitter and, optionally, the metadata enrichers.

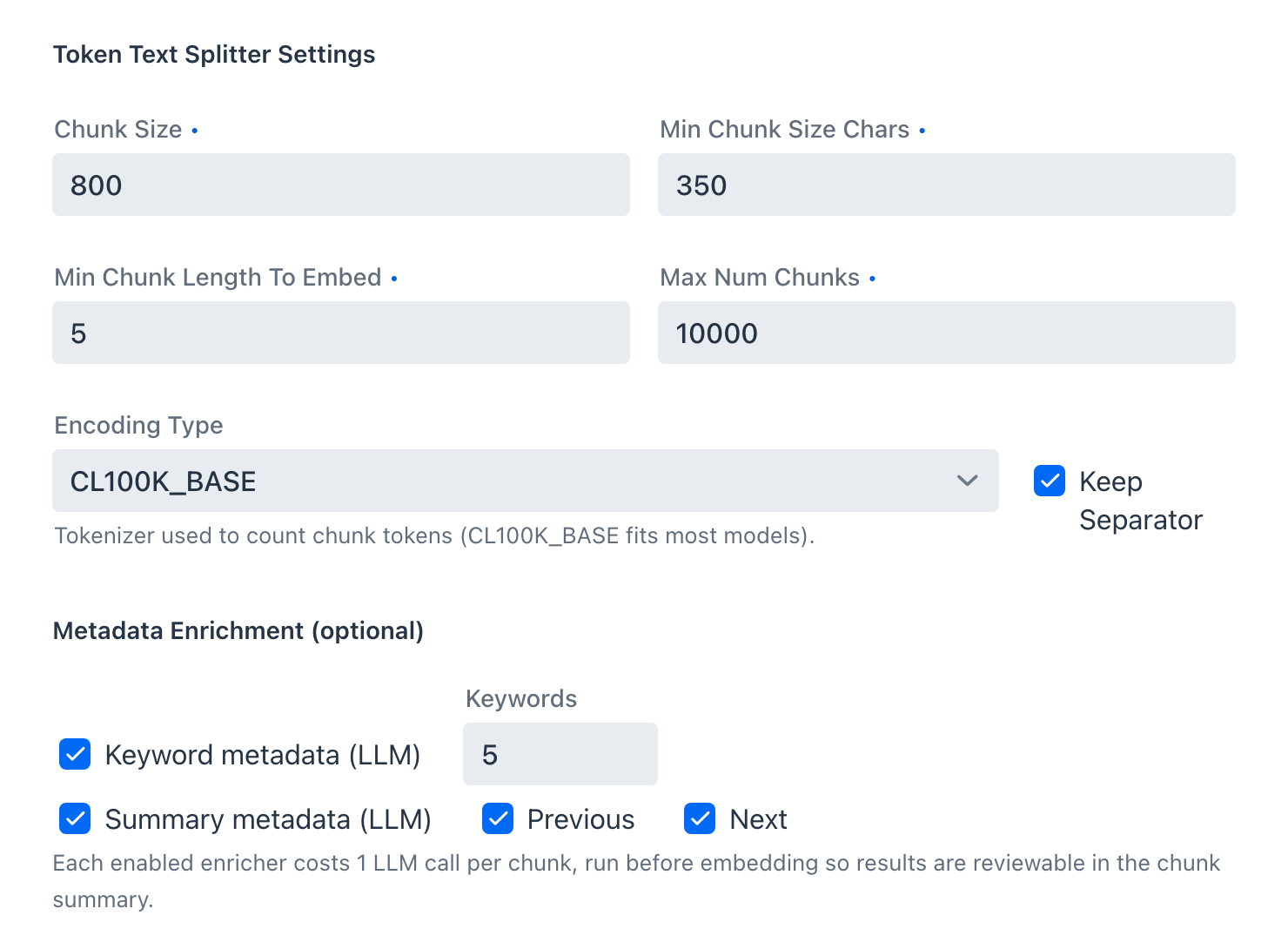

The Transform half of the dialog - token splitter settings above, Metadata Enrichment with the Keyword and Summary checkboxes below, and the cost hint

Splitter

TokenTextSplitter counts tokens rather than characters, so chunk sizes mean the same thing to the splitter and to the model.

Control Default Effect
Chunk Size 800 target tokens per chunk
Min Chunk Size Chars 350 a chunk shorter than this is merged forward rather than emitted
Min Chunk Length To Embed 5 chunks below this are dropped instead of embedded
Max Num Chunks 10000 ceiling for one document
Encoding Type CL100K_BASE tokenizer used for counting
Keep Separator on keeps the separator text inside the chunk

Chunk Size and Min Chunk Size Chars are the two that move retrieval quality most. Chunks that are too small lose the context that makes them answerable; chunks that are too large dilute the embedding so nothing scores well.

Metadata enrichment

Two optional enrichers attach LLM-generated metadata before embedding:

  • Keyword metadata uses KeywordMetadataEnricher, writing excerpt_keywords.
  • Summary metadata uses SummaryMetadataEnricher, writing section_summary, optionally folding in the neighbouring chunks with the Previous and Next options.

Each enricher costs one model call per chunk, so both of them on a 5-chunk document is 10 calls. This is the only part of indexing that spends model time, which is why the dialog states the cost before it starts and the progress dialog repeats it.

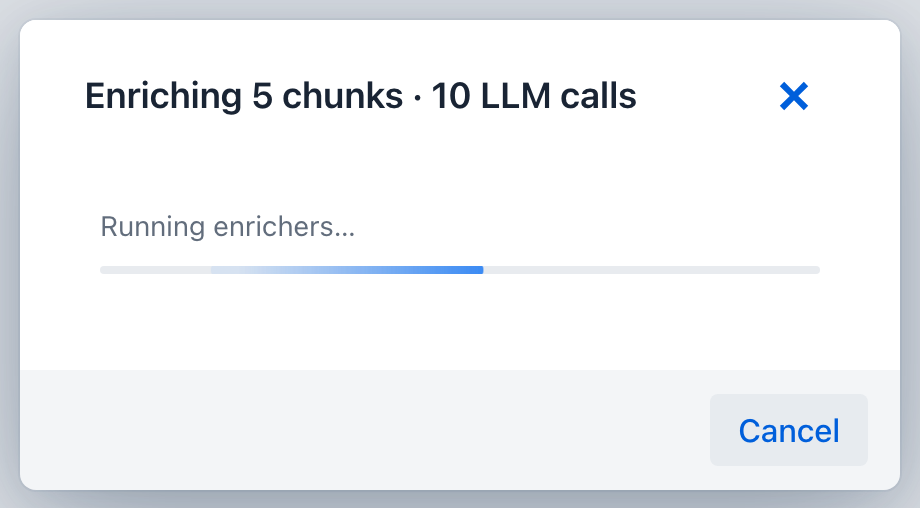

The enrichment progress dialog titled Enriching 5 chunks, 10 LLM calls, with a progress bar and a Cancel button

Enrichment is cancellable. Cancelling keeps the chunks already enriched and continues with the rest unenriched, so a slow local model never traps you in the dialog.

Where enriched metadata actually goes

Enriched metadata is stored on the chunk, but it reaches neither the vector nor the prompt. It is easy to assume more happens than actually does.

Spring AI picks the embedding input through EmbeddingModel.getEmbeddingContent, which defaults to Document.getText(). OpenAiEmbeddingModel is the only implementation in Spring AI 2.0 that overrides it, returning getFormattedContent(MetadataMode.EMBED) and folding every metadata key on the chunk into the embedded text. The Playground therefore pins spring.ai.openai.embedding.metadata-mode to none, so both providers vectorize the same thing: the chunk text. Without that pin the same document would produce different vectors on Ollama and on OpenAI, and internal keys such as docInfoId would land inside every OpenAI vector.

On the retrieval side, what reaches the prompt is decided by the augmenter's Context format option in the Generation stage, which offers document text with or without the source label. Neither setting renders enriched metadata.

So the enrichers do not move retrieval scores. What they give you is metadata you can read during chunk review and filter on later.

Review, then load

Chunking is a separate step from embedding. Chunk Document runs extract and transform and shows you the result; nothing is written to the vector store until you confirm. That gap is the point: adjust the splitter and re-run without re-uploading.

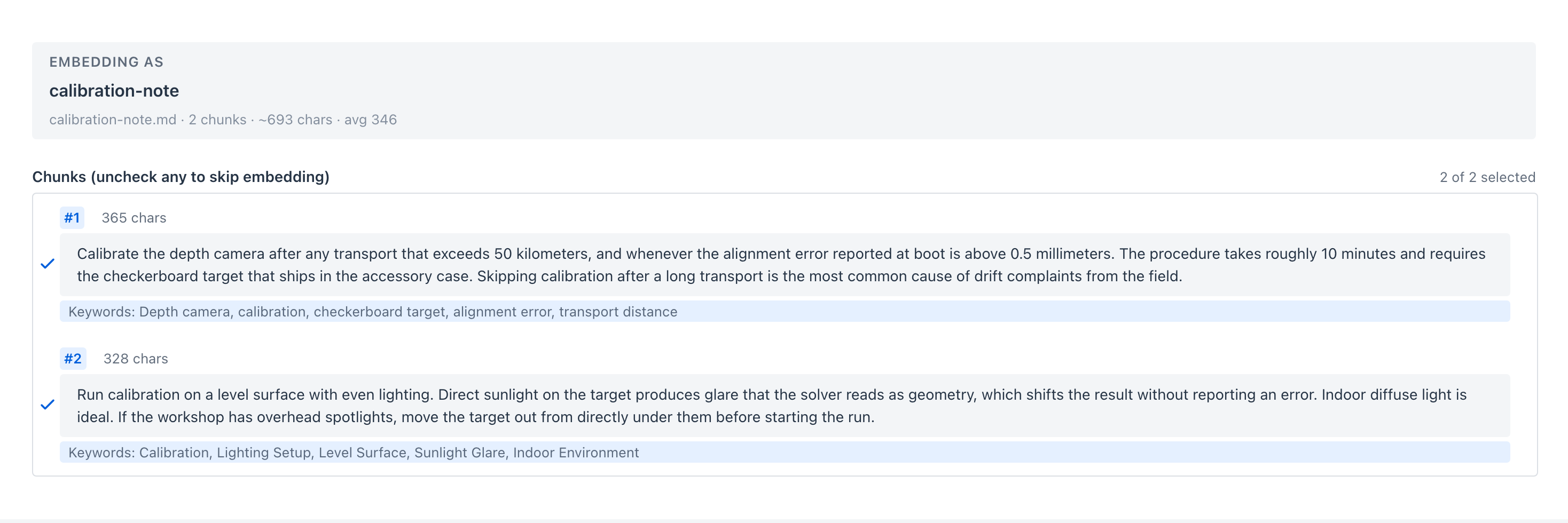

The chunk review list - an embedding summary header, then numbered chunk cards with their character counts, the extracted text, and a Keywords metadata chip produced by the enricher

Review is also a filter: each chunk has a checkbox, and unchecking one drops it from the load stage. Boilerplate, a table of contents, or a legal footer can be left out instead of polluting the store with chunks that will only ever be false matches.

Embed and insert performs the load stage, writing every selected chunk through the configured VectorStore. The document then appears under Sources → Documents, and if no RAG pipeline exists yet the app also creates a default retrieval pipeline for it, so chat has something to select immediately.

Not exposed, and why

Spring AI's ETL API has two members the Playground deliberately leaves out.

ContentFormatTransformer attaches a ContentFormatter to each document, which controls two exclusion lists: metadata keys kept out of the embedded text, and metadata keys kept out of the prompt text. Neither half has a subject here. Embedding input is pinned to document text on every provider, so no metadata reaches the vector and there is nothing to exclude from it. The prompt half belongs to the Generation stage, which already controls it per pipeline at runtime.

FileDocumentWriter writes documents back to disk rather than to a vector store, which is an export concern rather than an indexing one.
